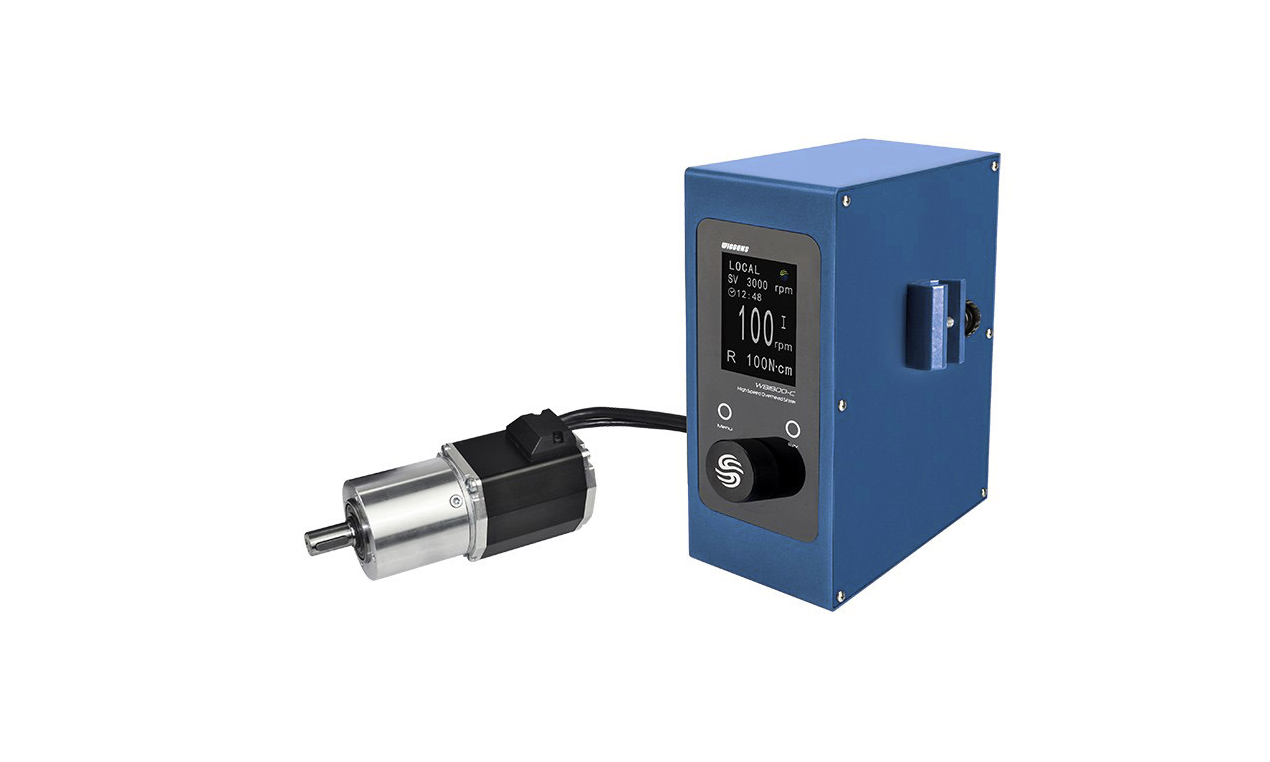

English WB1800-C Overhead Stirrer
Description:
Remotely Controllable High Torque / High Speed Stirrers C & EC Series
* Suitable for reaction systems and other high torque / high speed applications
* Set speed can be maintained when viscosity of liquid changes
* Brushless DC motor made in Germany, for high performance stirring processes
* Maintenance-free
* Quiet and reliable
* Digitally adjustable rotation speed and direction
* Remote controller can display actual speed and actual torque as well as the set speed
* Digital (RS-232/485) and analog communication available for remote PC or PLC control
Performance
* Years of vibration-free and silent operation.
* Powerful torque capable of handling high viscosity tasks.
* Maintenance of constant motor speed by control system even under conditions of changing viscosity.
* Best effort function intelligently manages its stirring speed to keep stirring even workload is out of its capacity.
* Prevention of accidental spills or splashes thanks to microprocessor controlled smooth start and stop functions.

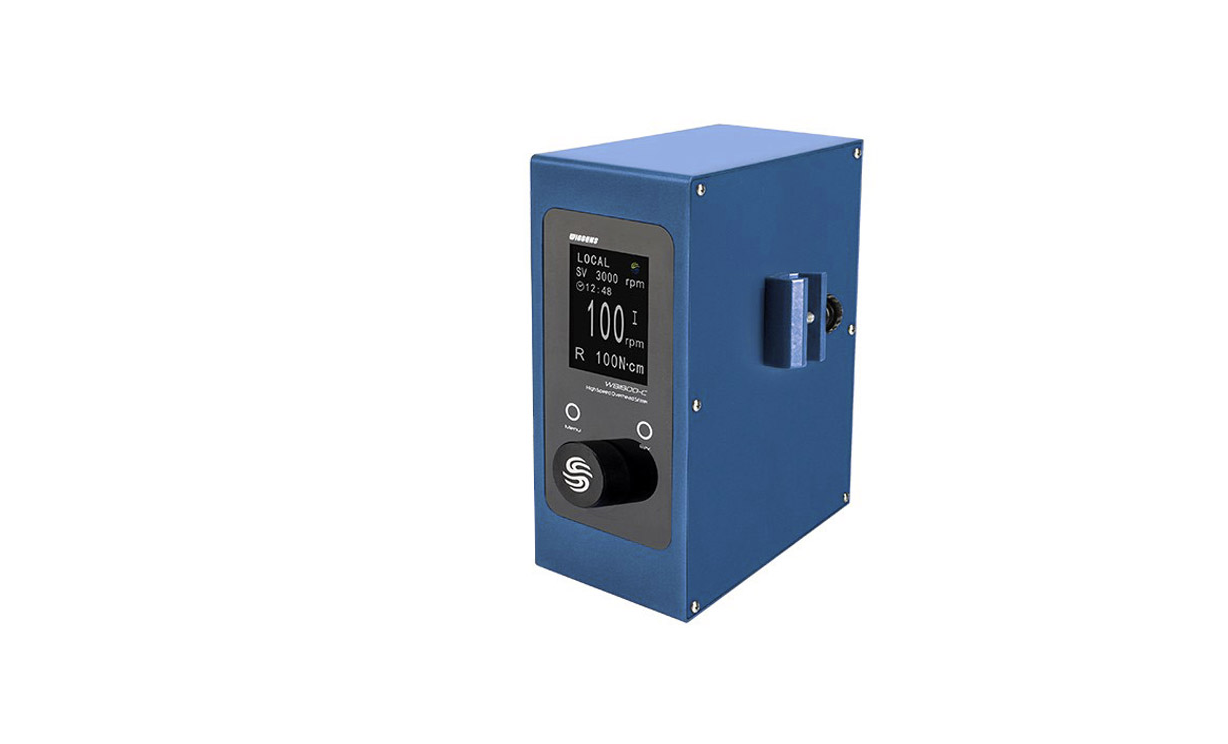

Practical external controller.
* Intuitive and easy control with touch TFT.
* It enables convenient and safe external control without opening the sash of the fume hood or safety cabinet.
Technical Data:
| Model | WB1800-C |
| Control Type | TFT Display for Speed and Torque and On-Touch Control |
| Torque Display | Stirrer converts output current to torque, reflecting the changing load of motor |
| Speed Range (rpm) | 20-800 |
| Speed Accuracy(rpm) | ±1 |
| Maximum Viscosity (cps) | 150000 |
| Maximum Torque (N-cm) | 1320 |
| Rated Torque (N-cm) | 188 |
| Maximum Capacity (L) H2O | 50 |
| Power (W) | 150 |
| Dimensions (W × L × H in mm) | 216×65×65 |
| Motor Weight (Kg) | 2.3 |
