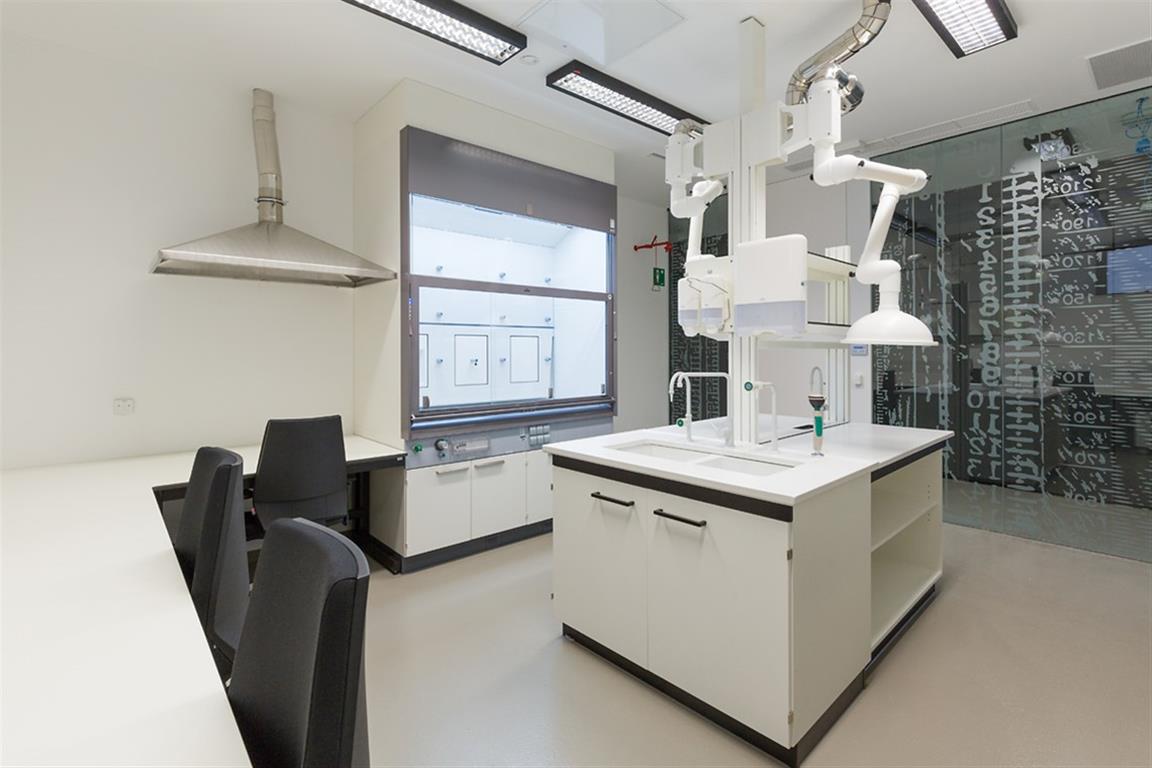

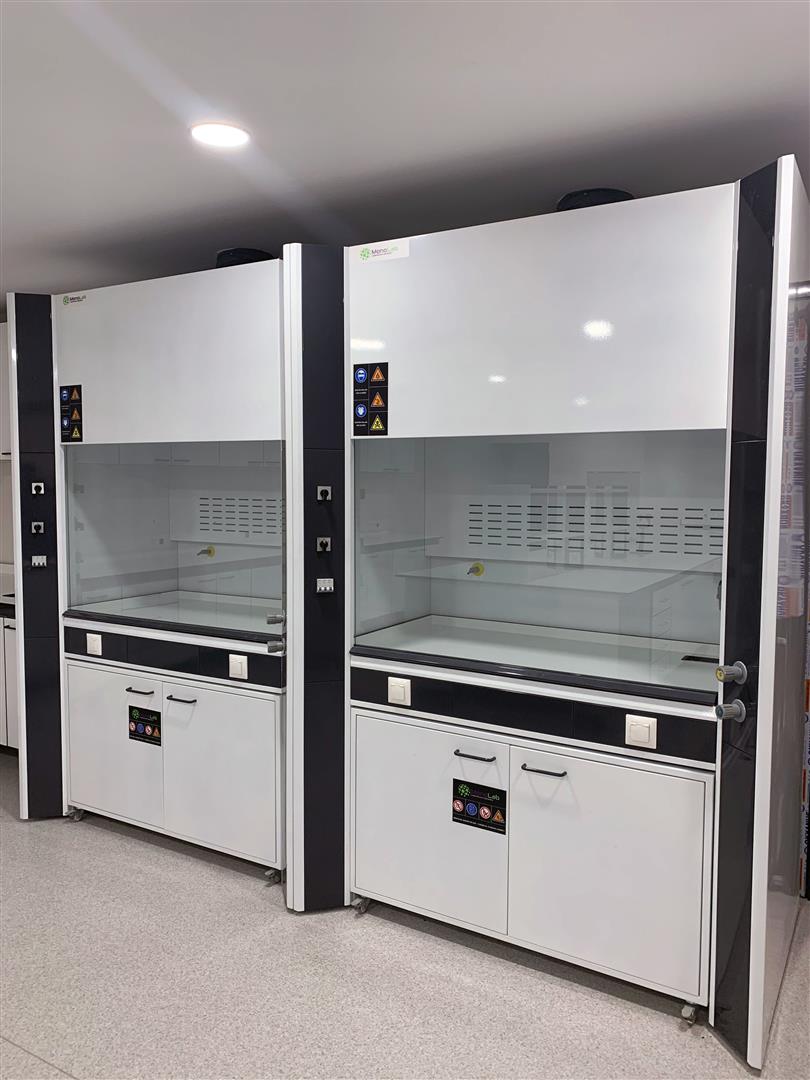

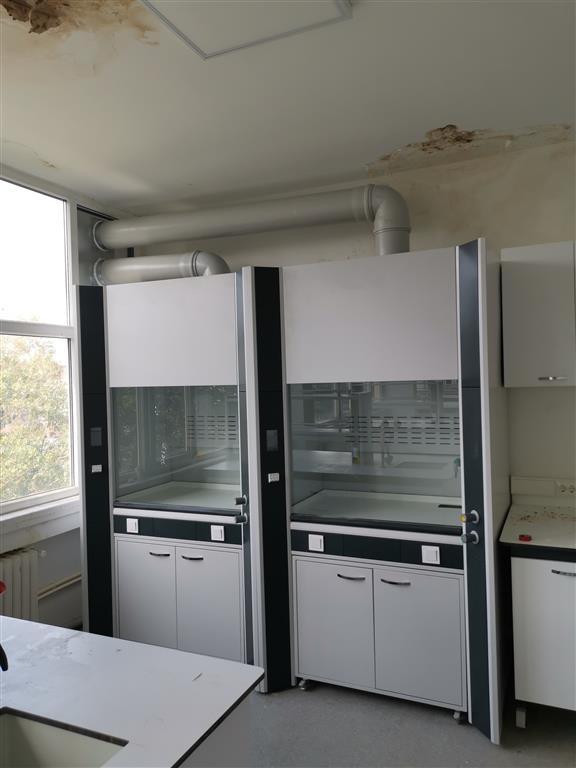

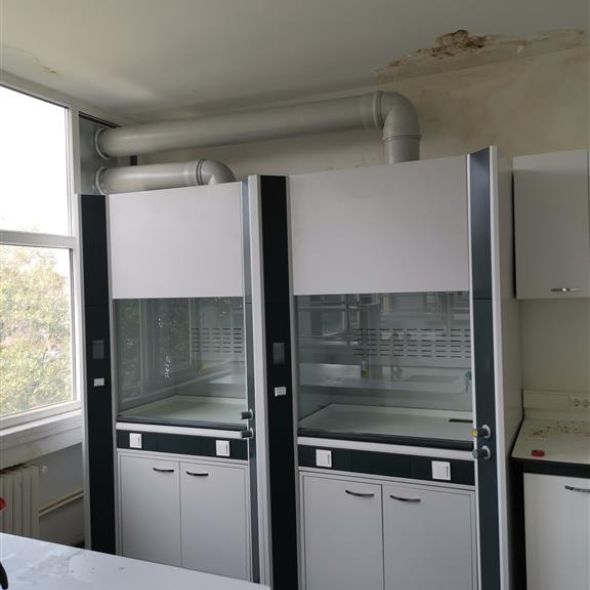

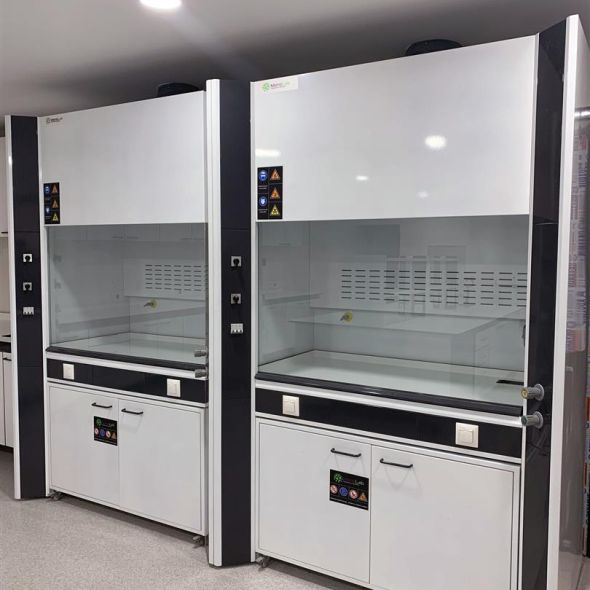

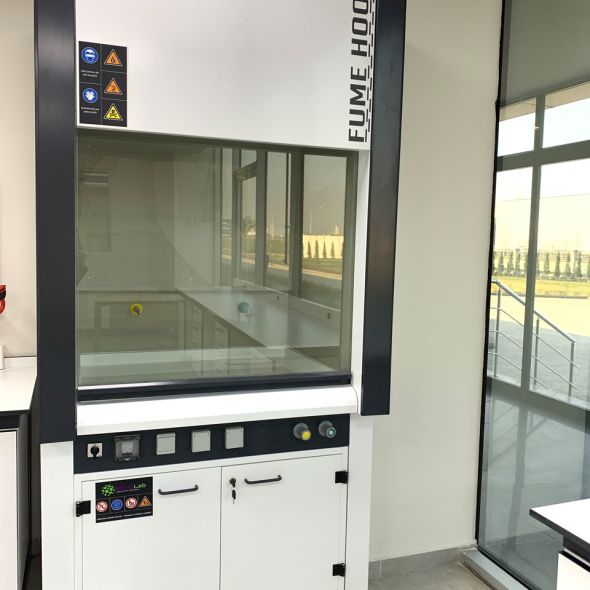

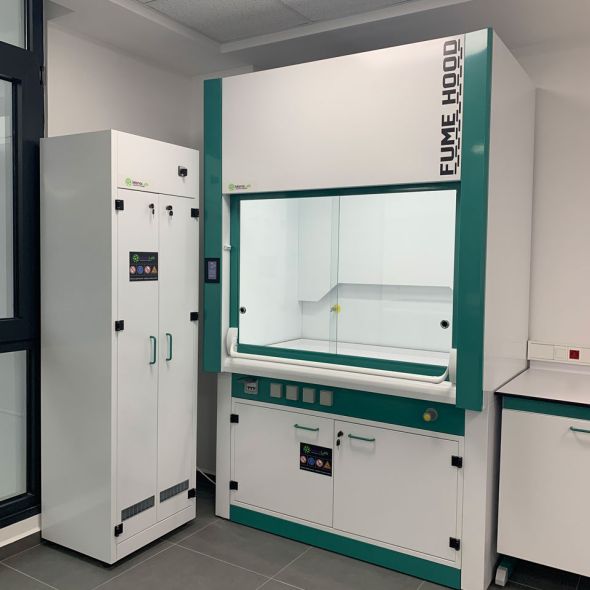

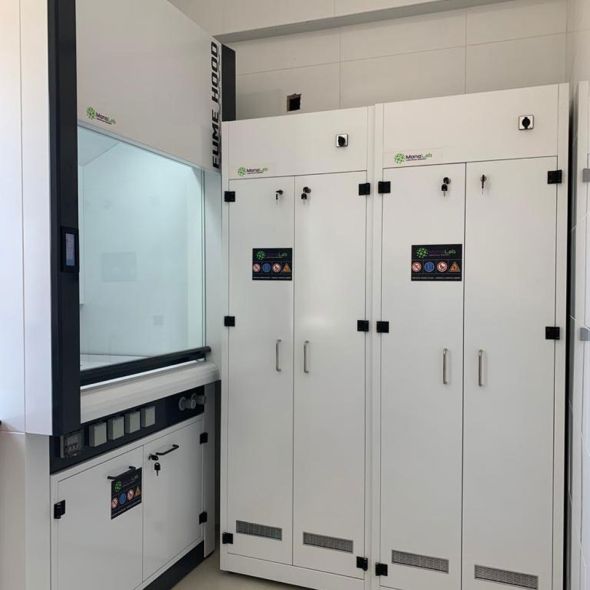

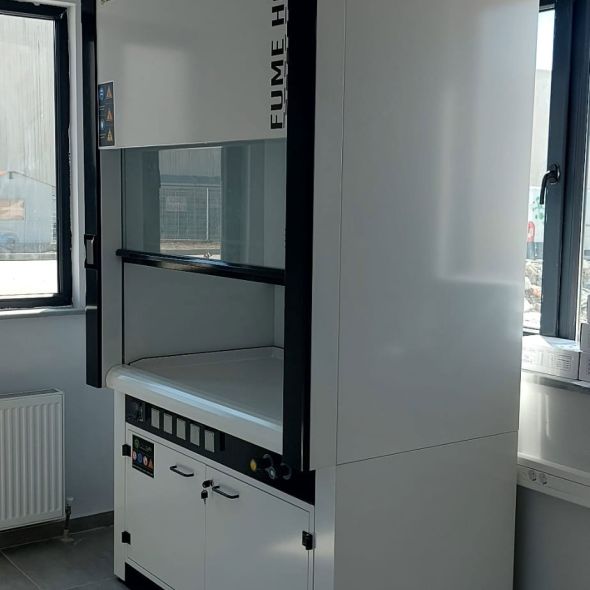

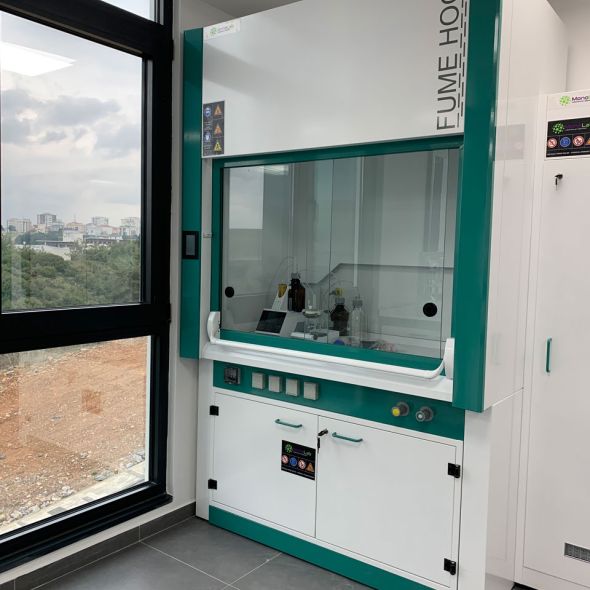

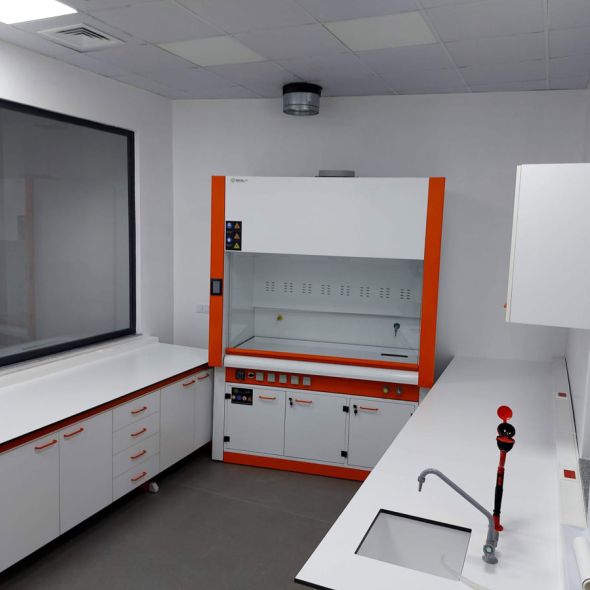

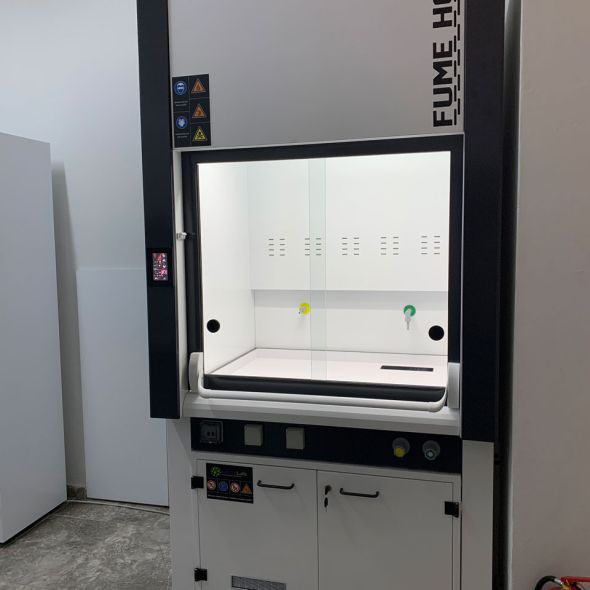

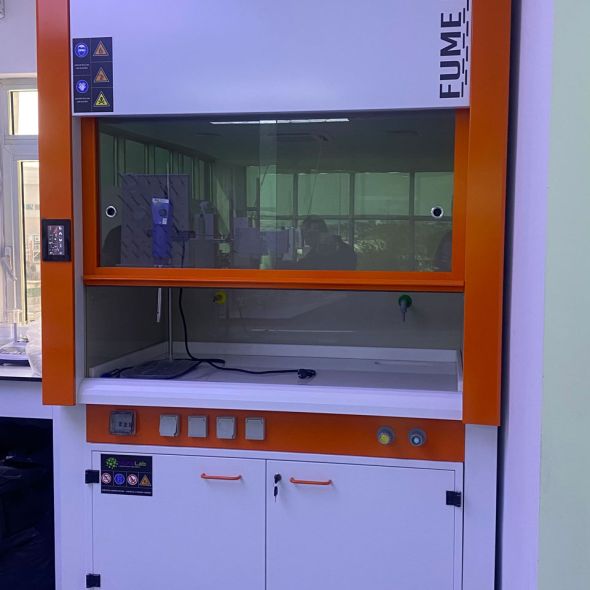

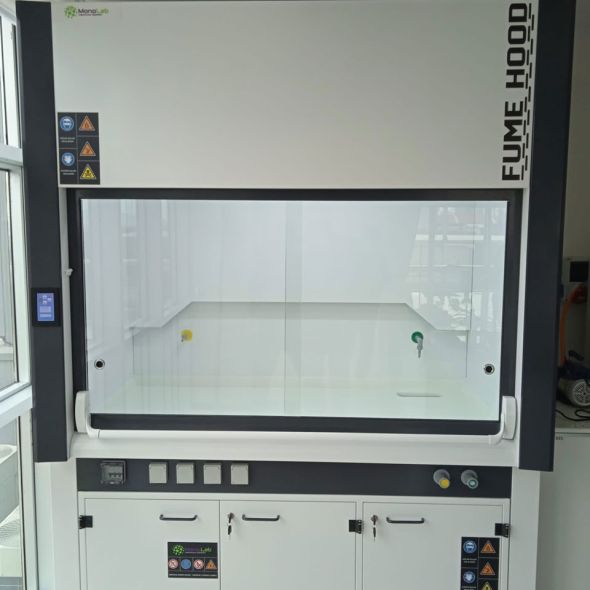

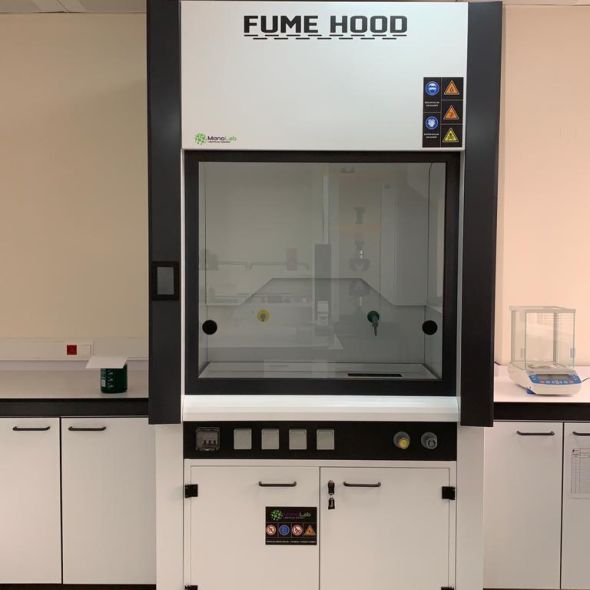

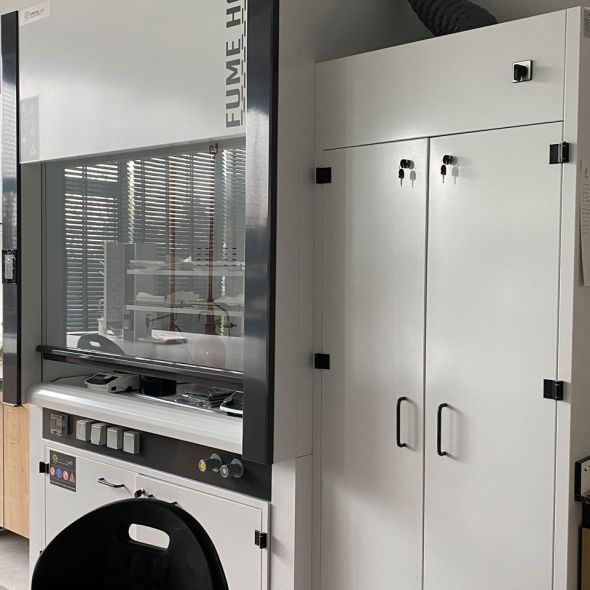

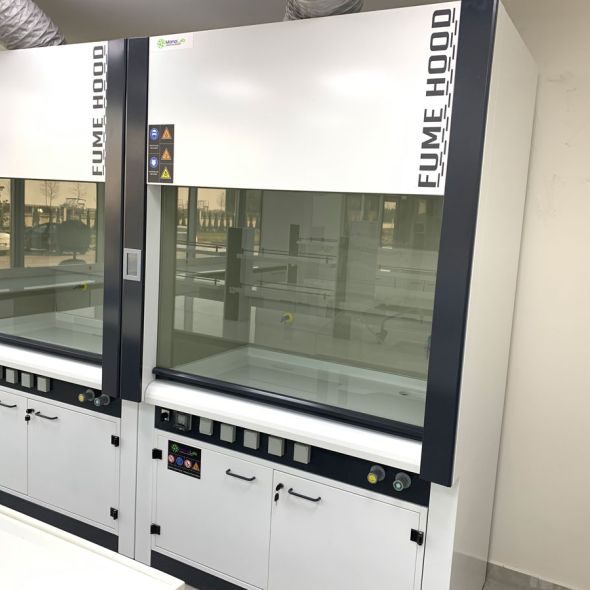

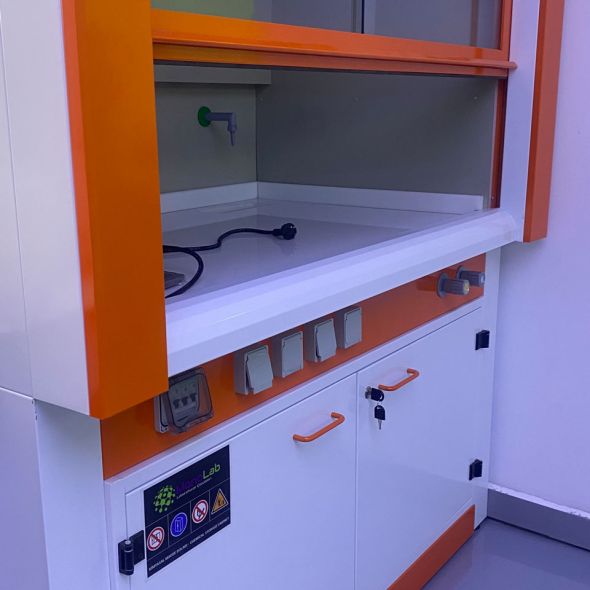

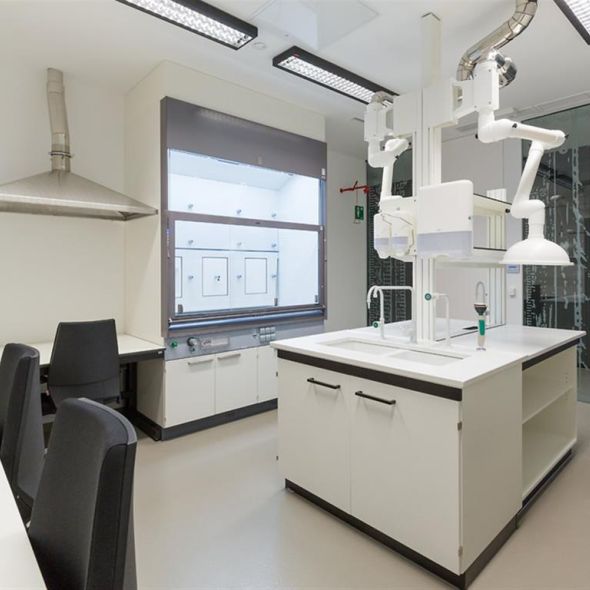

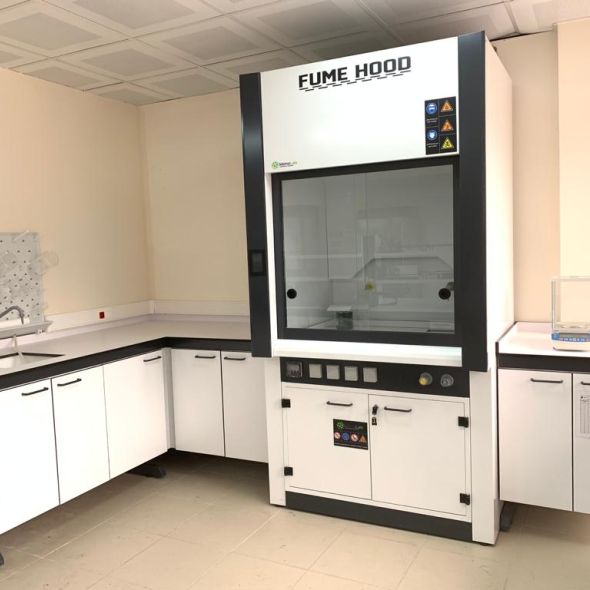

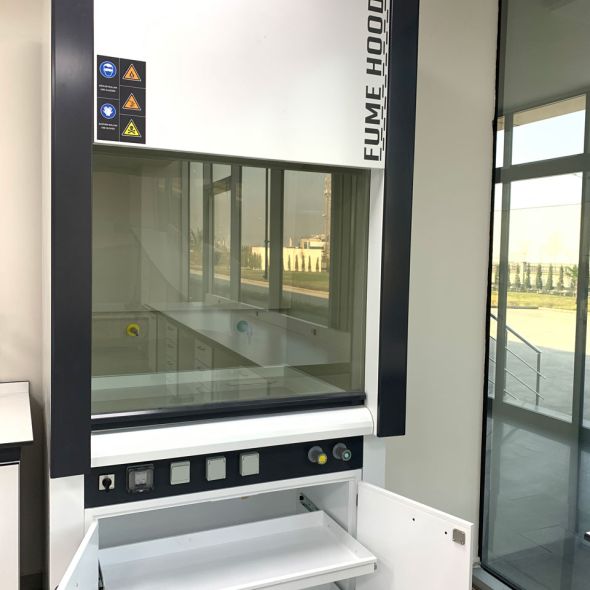

Fume Hood Systems

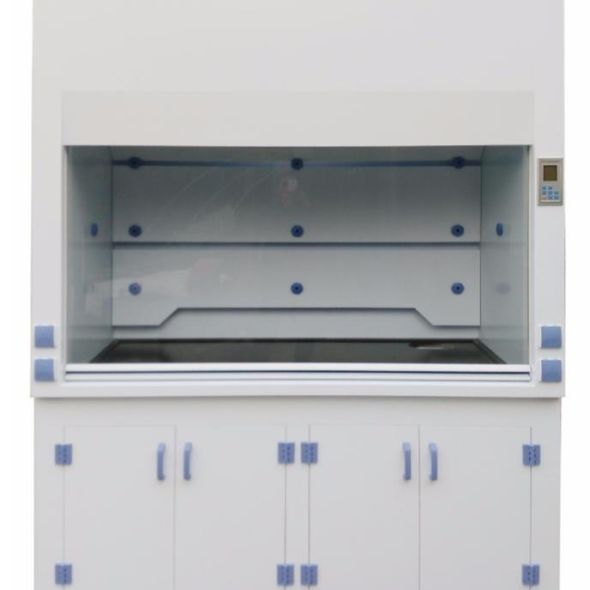

Standard Model, High Resistance, Polypropylene, Walk-In, Ex-Proof, Bench Top and Special Demand Fume Hood Systems
Standard Model, High Resistance, Polypropylene, Walk-In, Ex-Proof, Bench Top and Special Demand Fume Hood Systems
Fume hood systems are used in order to prevent the intense acid vapor, gas, heat and odor that will be released during the tests to be carried out in the laboratory from damaging both the laboratory staff and the equipment in the laboratory environment, in order to eliminate them in the criteria stipulated by the standards (EN14175).
The main targets regarding the use of fume hood can be listed below;
It should prevent the passage of dangerous gases and acid vapors emitted by air from the fume cupboard to the room.
Effectively remove fumes to reduce the risk of explosive or hazardous environment in the work area.
Users should be protected against splashing materials and flying particles thanks to the front protective safety glass
Fume hoods are used by the users in the sector they work in, the equipment they will use, chemicals etc. It can be designed as a "custom design" depending on the requirements. A healthy working environment can be provided for many years by creating the right combination with the evaluation of the alternatives according to the needs.
Click to get quick offer
Kabinlerin dış gövdesi elektrostatik toz boyalı çelik sacdan imal edilmiştir. Kolay temizlik açısından kontaminasyona karşı çalışma tablası paslanmaz çelik malzeme ile tasarlanmıştır. Lamine edilmiş temperli ön pencere UV ışınlarını geçirmez.
Kontrol paneli dijital ve LCD göstergelidir. Kontrol panelinde;
Cihazda 2 adet HEPA tip filtre olup 0,3 mikrondan büyük boyutlu partikülleri tutar. Minimum etkinlik düzeyi %99,999’dur.
(DOP testine göre)Dekontominasyon faktörü(F)minimum 100000’dir.
Class ΙΙ Biyogüvenlik kabini (Mikrobiyolojik Güvenlik Kabinleri) kontaminasyon riski olan hava kanalları negatif basınç altında bırakılmış böylece çalışma alanına giden havaya partikül karışması önlenmiştir.
Class ΙΙ Biyogüvenlik kabini (Mikrobiyolojik Güvenlik Kabinleri) Teknik Özellikleri:
Hepa Filtre: HEPA tip filtre olup 0.3 mikrondan büyük boyutlu partikülleri tutar. Minimum etkinlik düzeyi %99,999’dur. (D.O.P testine göre) Dekontominasyon faktörü(F) minimum 100000’dir.
Çalışma Kabini: Epoksi Elektrostatik Toz Boyalı 2mm soğuk çekilmiş çelik DKP malzemeden, alt dolap ise mobil, yerinden çıkabilir veya metal kapaklı sabit sistem olarak tasarlanabilir. Kabin içinde; hortum uçlu gaz ve su çıkış nozulları, ağır ve hafif gaz ayar paneli mevcuttur. Kabin içi aydınlatma; gerçekleştirilecek olacak çalışmalar çerçevesinde ihtiyaçlara göre flouresant veya UV aydınlatma olarak tasarlanabilir. Davlumbaz mekanizması hava akış fiziğine uygun olarak tasarlanır.
Çalışma Zemini: AISI 304 Kalite Paslanmaz Çelik Tezgah Yüzeyi
Ön Filtre: Sentetik Fiber esaslı filtredir. HEPA filtreye gelen havadaki partikülleri filtre ederek HEPA filtrenin ömrünü uzatır.
Fan: Standart EN 60034-1 Koruma sınıfı IP44 Çelik gövdeli, tek emişli santrifugal tip üfleyicidir. Pervane ve motor statik olarak balanslıdır. Laminar hava hızı 3,35-0,55 m/sn’dir.
Aydınlatma: 800 Lüx(Flouresant Lamba/UV Lambalar enerji tasarruflu olup, çalışmalar için optimum performans göstermektedir.
Boya: Class II Biyogüvenlik Kabinleri EN 12469 standartlarına uygun olarak üretim aşamasında özel solventlerle temizlenme, epoksi elektrostatik toz boya ile kaplanma ve 200 °C ̊’de pişirilme aşamalarından geçerek kullanıma hazır hale getirilir.
Gürültü Seviyesi: 55 dBA
Standart Aksesuar: Ayaklı destek standı,UV lamba,Hız ayarlı dimmer anahtar,filtre ömür sayacı
Kurulu Güç: 220 Volt/50Hz (şehir cereyanı)
Hava Akış Kontrolü: Manuel Hız Kontrollü
