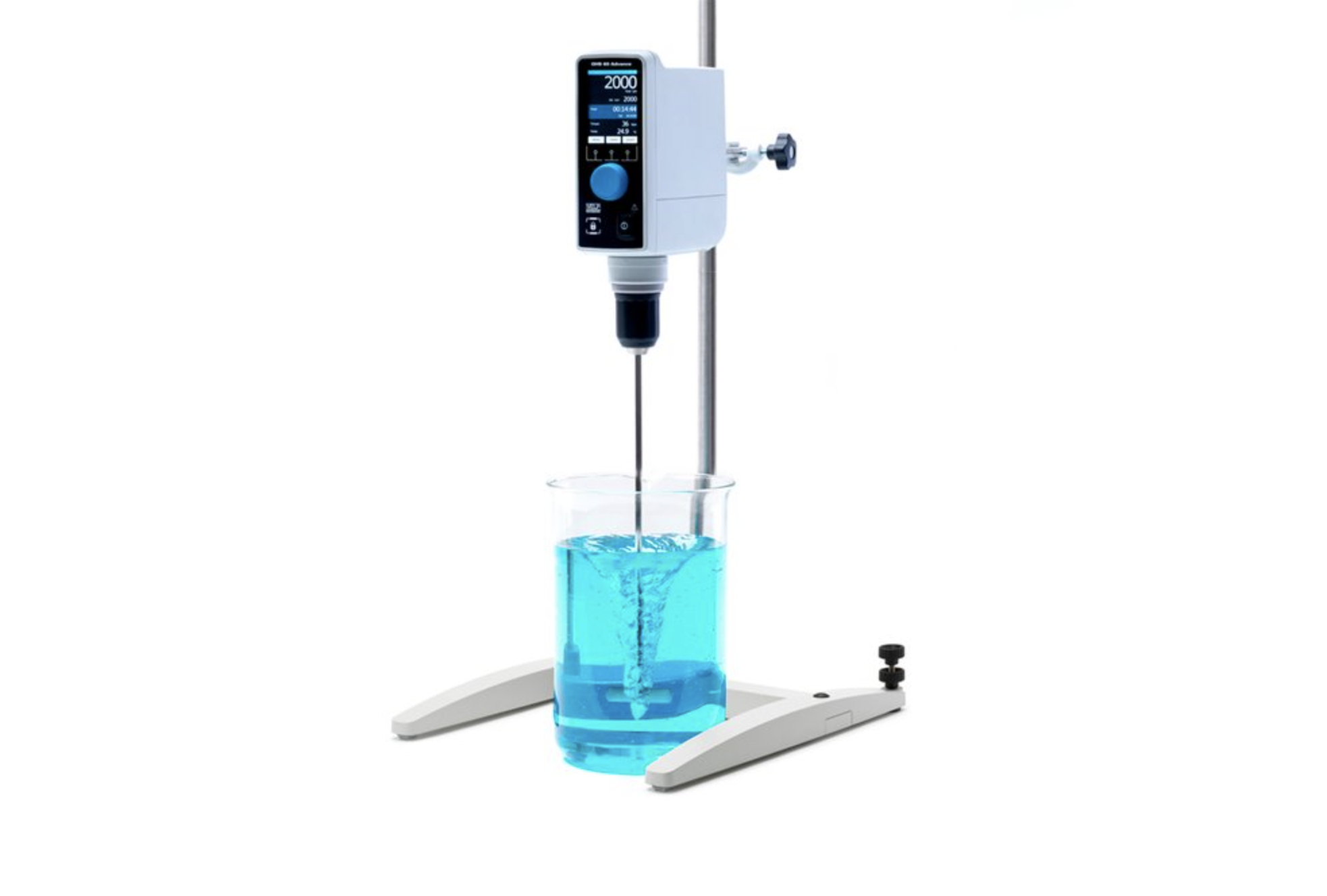

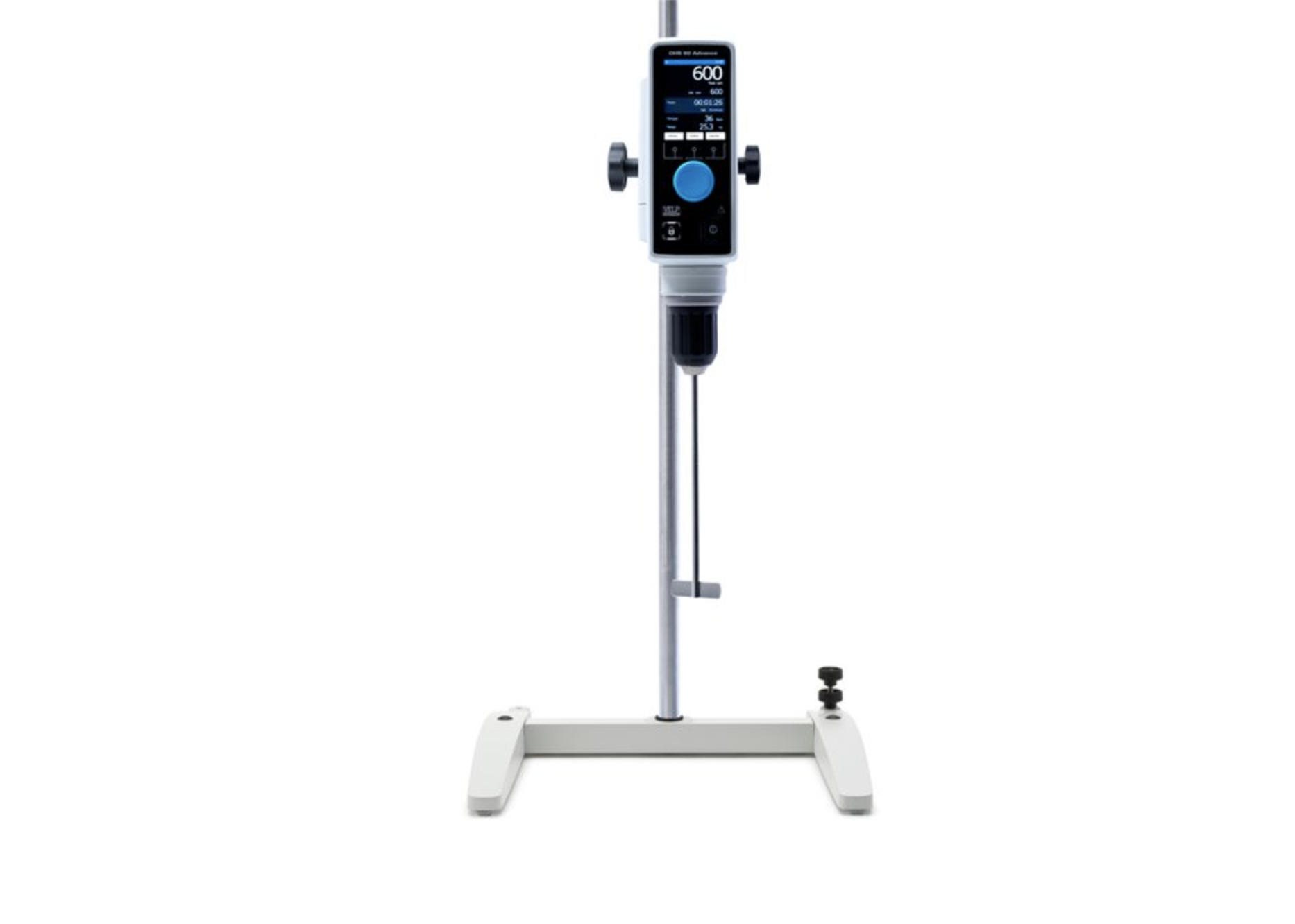

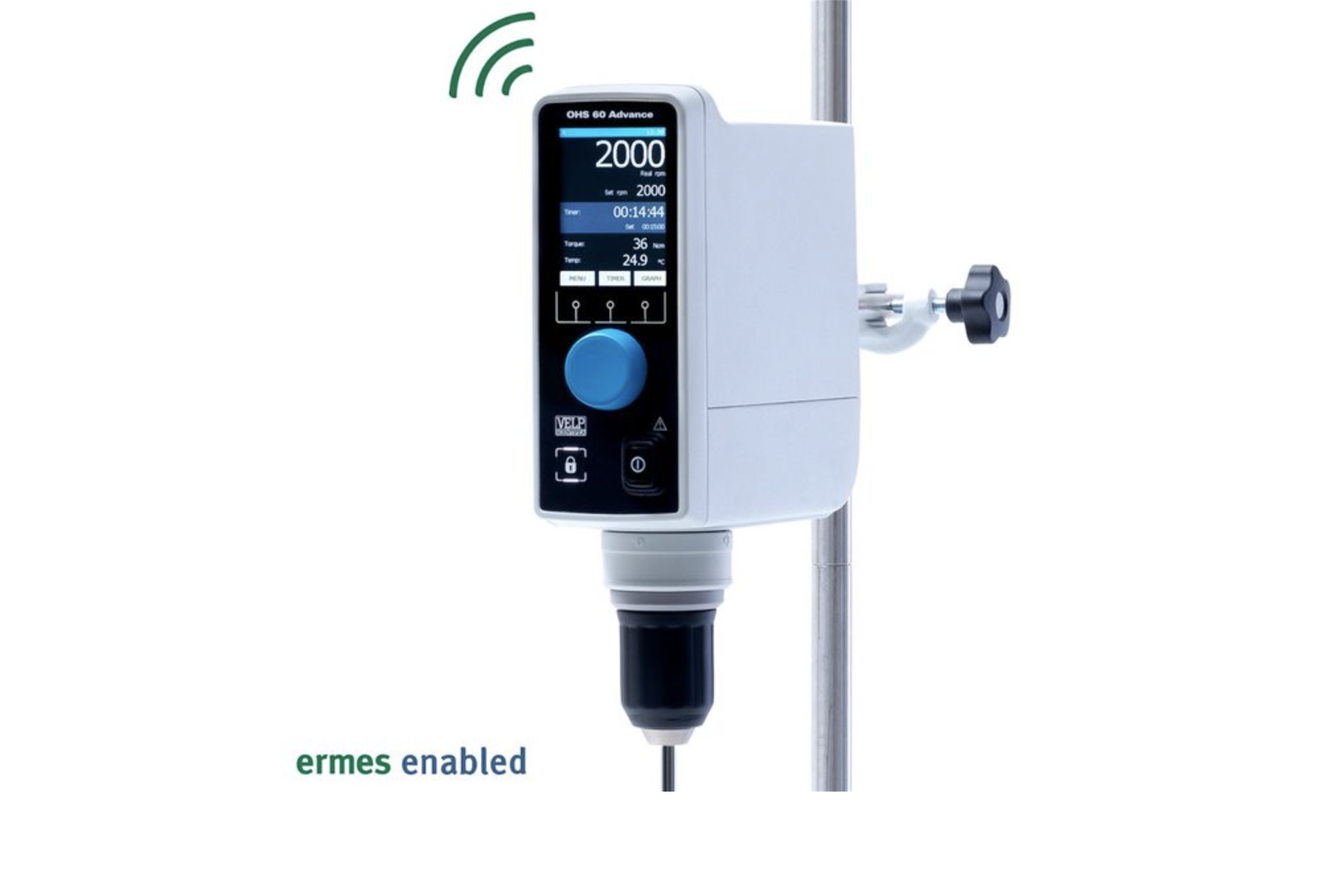

OHS60 Advance Overhead Stirrer

Description; OHS 60 Advance is the VELP high-end overhead stirrer designed to guarantee the highest safety standards.



The resistant sealed housing and the IP 54 Protection Rating guarantee durability even in the most aggressive environments.



Integrated overload, overtemperature, and overcurrent safety alarms will preserve the performance over time by stopping the stirring

Safe start and stop knob operation and lock key avoid unintended start up and changes of the working conditions.

Integrated vibration sensor with different levels of sensitivity will stop the operation and inform you to be sure that your OHS is stable and properly fixed.

Technical Data;

Display 3,5" Graphic TFT Display
User Interface Digital
Motor Brushless DC
Stirring Volume (H2O) Up to 40 L
Speed Gears 1
Max Torque 60 Ncm
Stirring Speed Range 30 – 2000 rpm
Speed Accuracy 1 rpm
Speed Control Digital
Max Viscosity 50.000 mPa*s
Torque Compensation SpeedServo
Chuck Range Ø from 1 to 13 mm
Shaft Diameter Pass-Through Up to 8.5 mm
Safety Vibration Sensor Yes
Timer Yes
Method Setting Yes
Lock Of The Instrument Yes
External Probe Connection Pt 100
Temperature Measuring Range -200 to 550 °C
Temperature Resolution 0.1 °C
Interfaces USB/Wi-Fi
Dimensions (WxHxD) 90x315x235 mm
Weight 4,6 kg
Protection Class DIN EN 60529 IP 54
