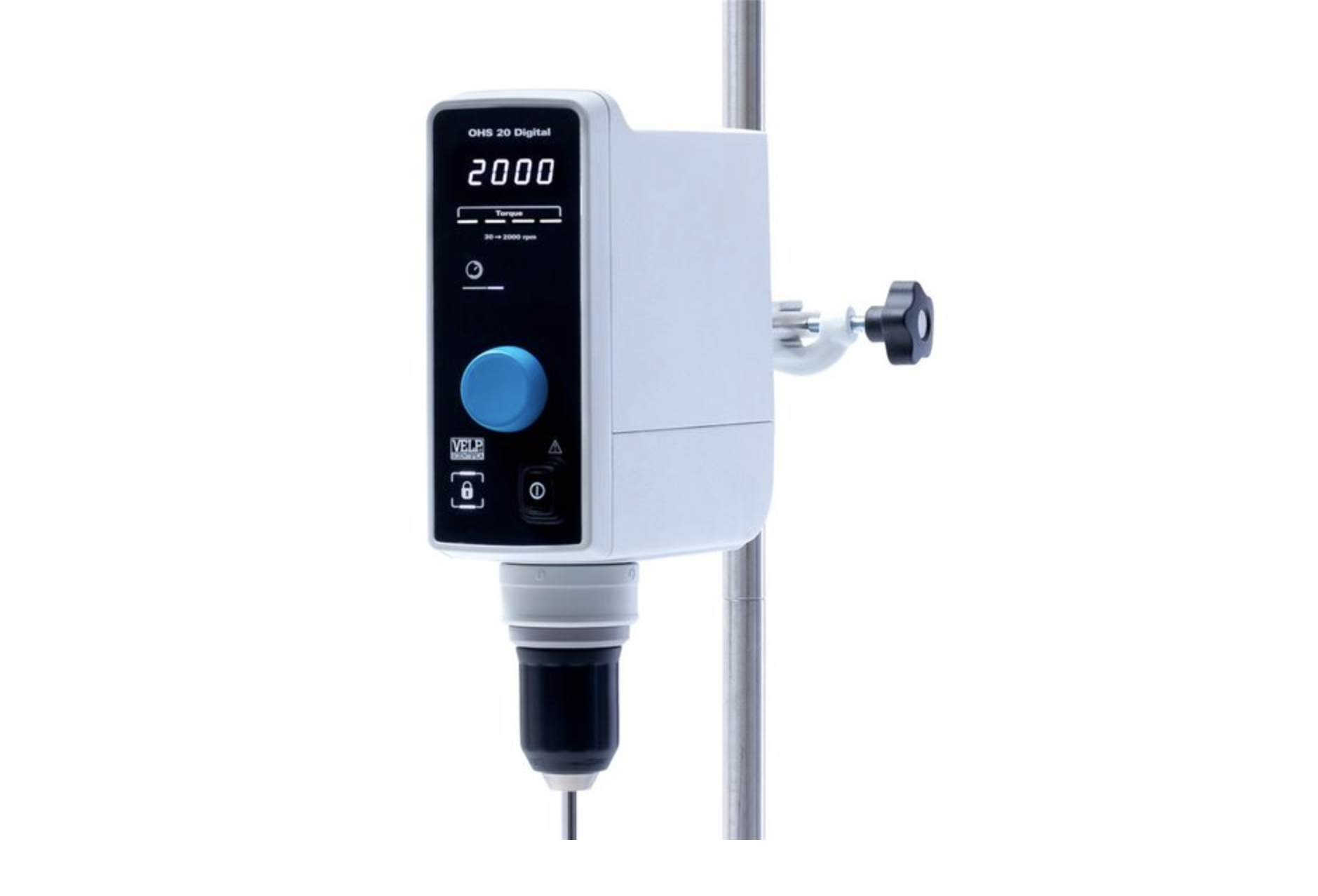

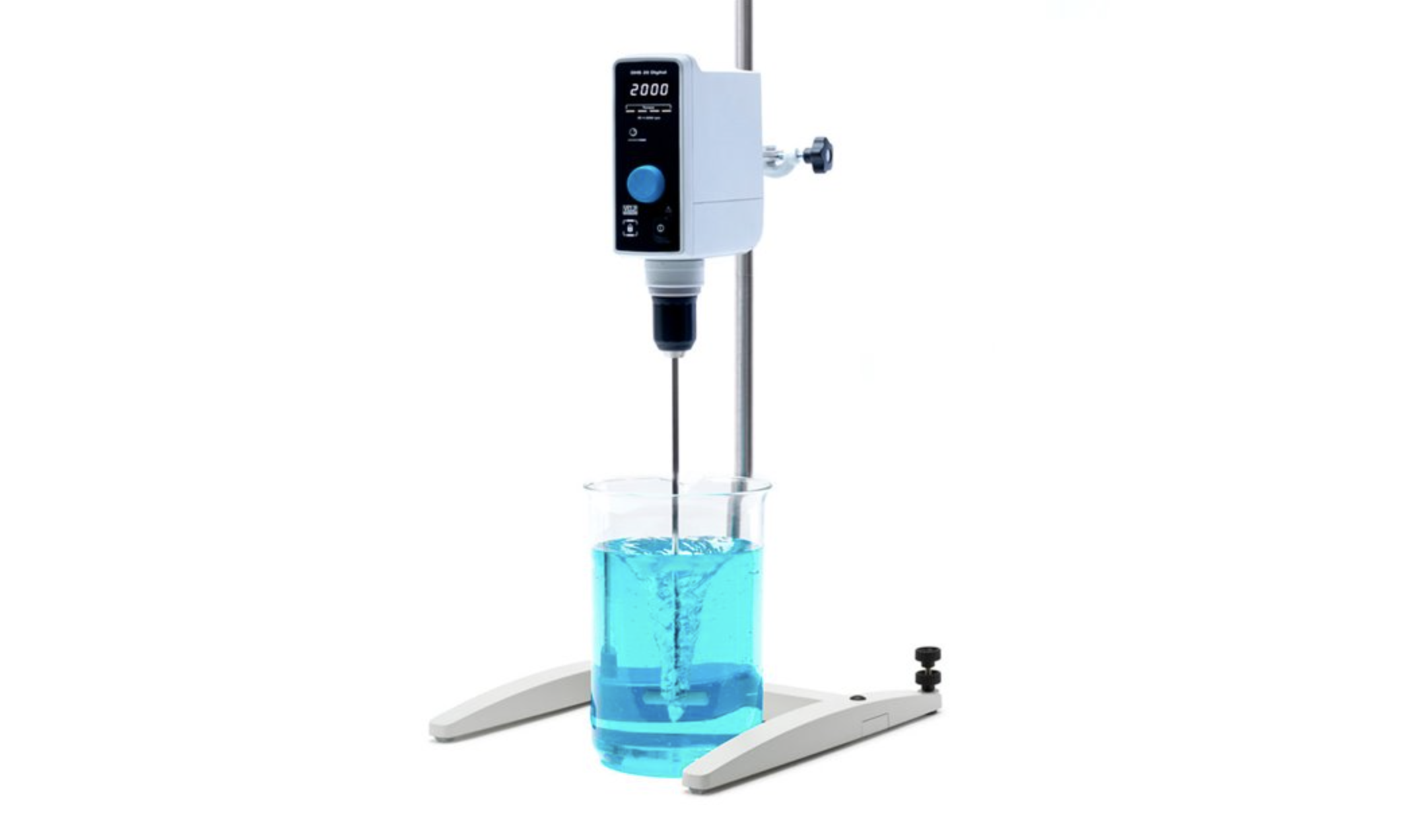

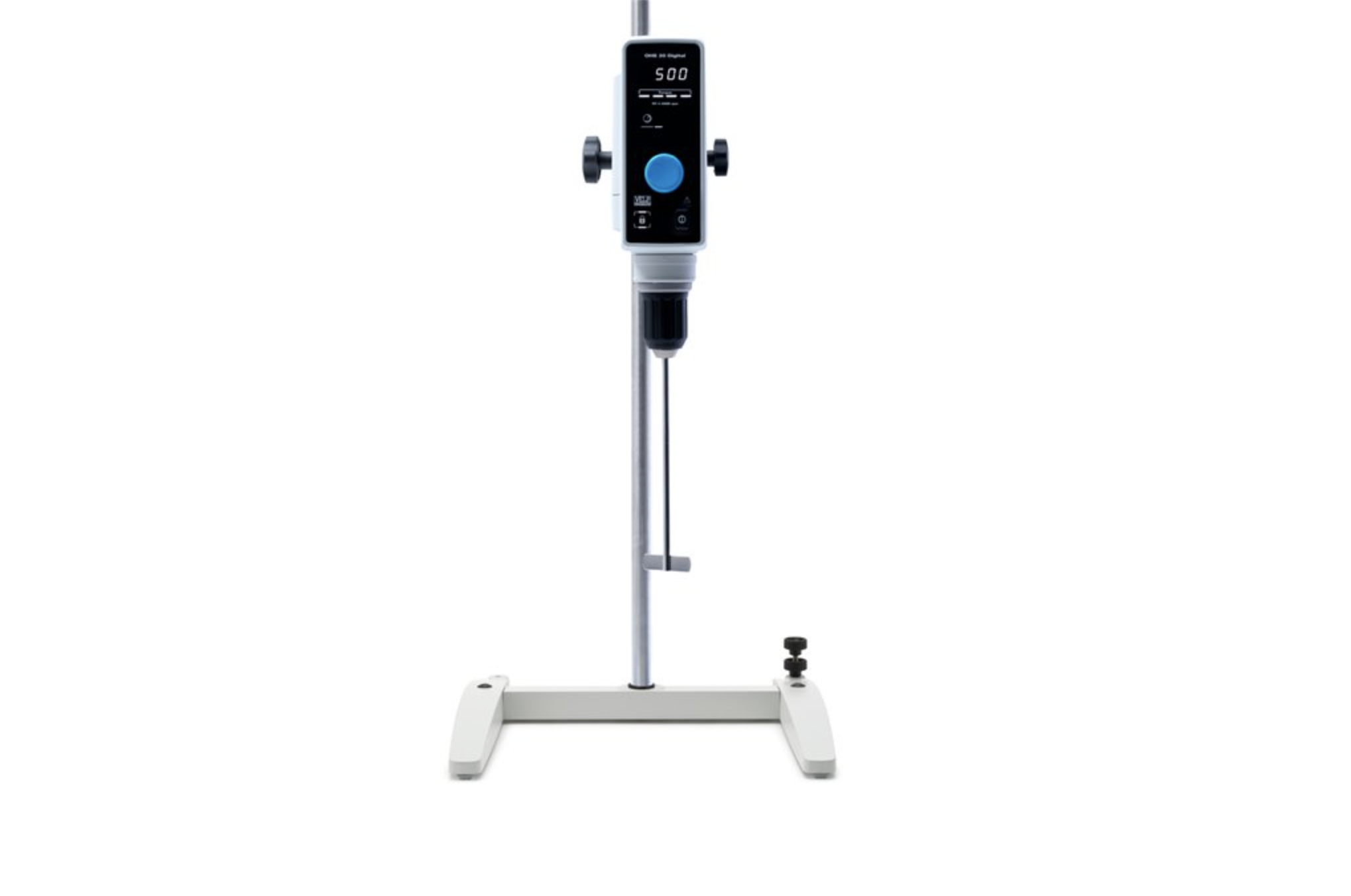

OHS20 Digital Overhead Stirrer
Description;
OHS 20 Digital is designed to guarantee the highest safety standards. The resistant sealed housing and the IP 54 Protection Rating guarantee durability even in the most aggressive environments.
Integrated overload, overtemperature, and overcurrent safety alarms will preserve the performance over time and stop stirring for maximum safety in your lab.
Safe start and stop knob operation and lock key avoid unintended stat up and changes of the working conditions.
Technical Data;
Display | Digital Display |
User Interface | Digital |
Motor | Brushless DC |
Stirring Volume (H2O) | Up to 25 L |
Speed Gears | 1 |
Max Torque | 20 Ncm |
Stirring Speed Range | 30-2000 rpm |
Speed Accuracy | 1 rpm |
Speed Control | Digital |
Max Viscosity | 10.000 mPa*s |
Torque Compensation | SpeedServo |
Chuck Range | Ø from 1 to 13 mm |
Shaft Diameter Pass-Through | Up to 8.5 mm |
Timer | Yes |
Lock Of The Instrument | Yes |
Interfaces | USB |
Dimensions (WxHxD) | 90x285x235 mm |
Weight | 4,1 kg |
PROTECTION CLASS DIN EN 60529 | IP 54 |
