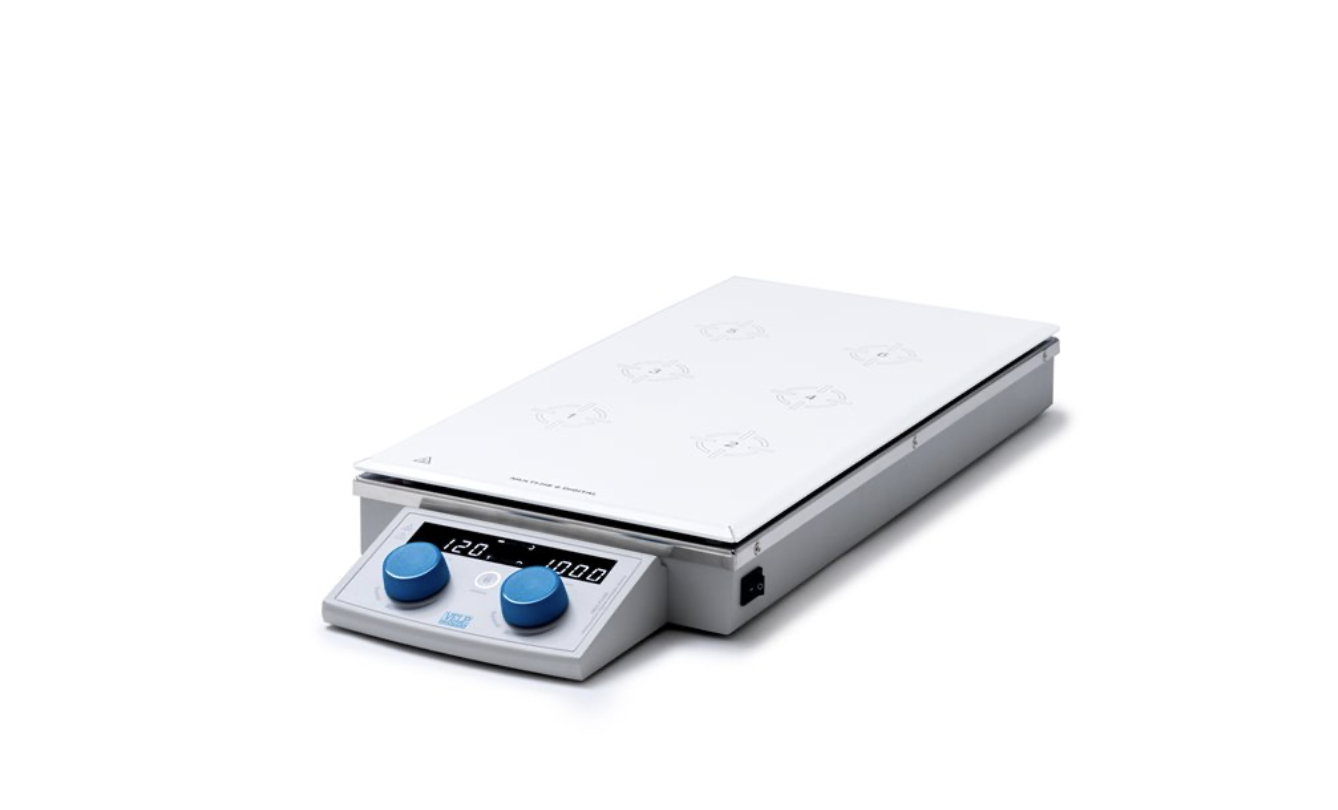

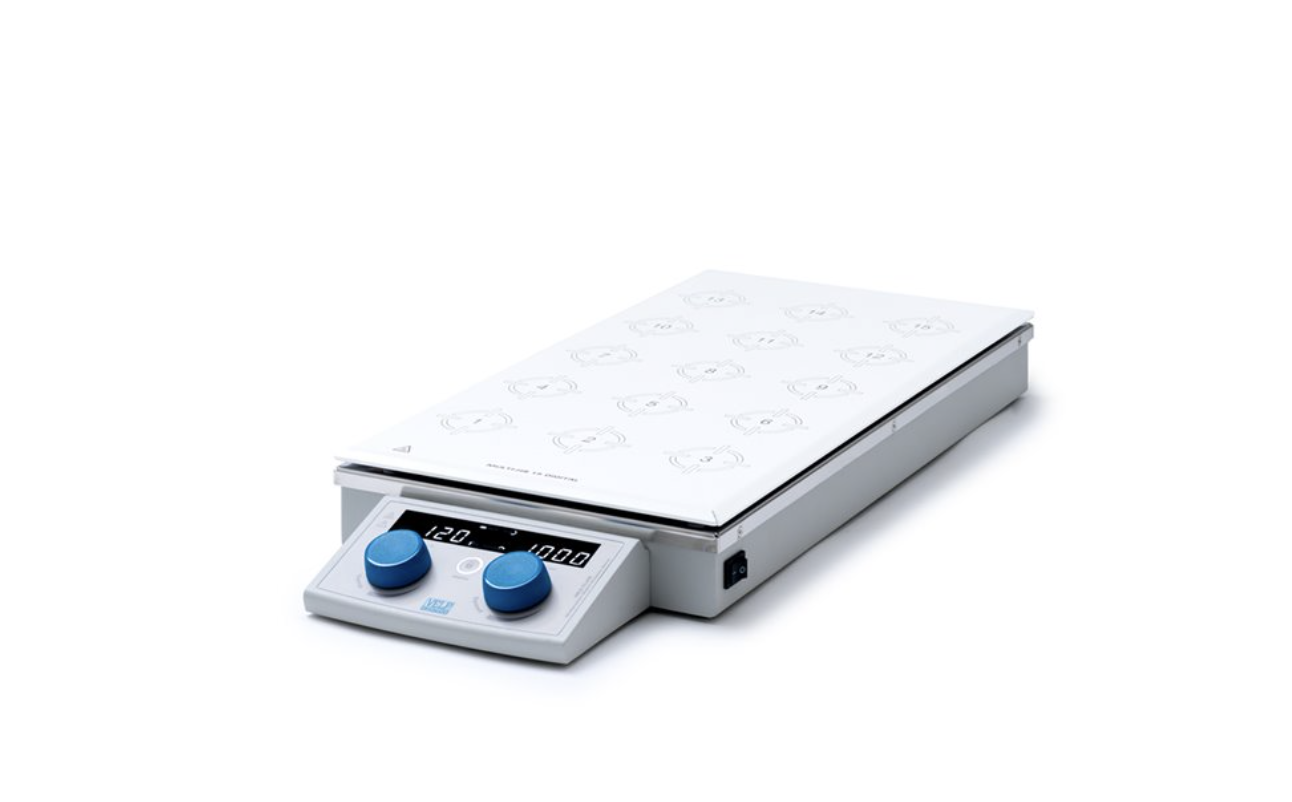

TR Multi-HS 6/15 Digital Multi-Position Hot Plate Stirrer
Description;
The MULTI-HS Hot Plate Stirrers have a unique system of warnings: when the plate temperature reaches 50°C the display will show a residual hot plate message preventing potential burning.
The Safety Lock feature avoids possible alteration of the working conditions or unintentional modification of the settings in order to meet all the Labs safety standards.

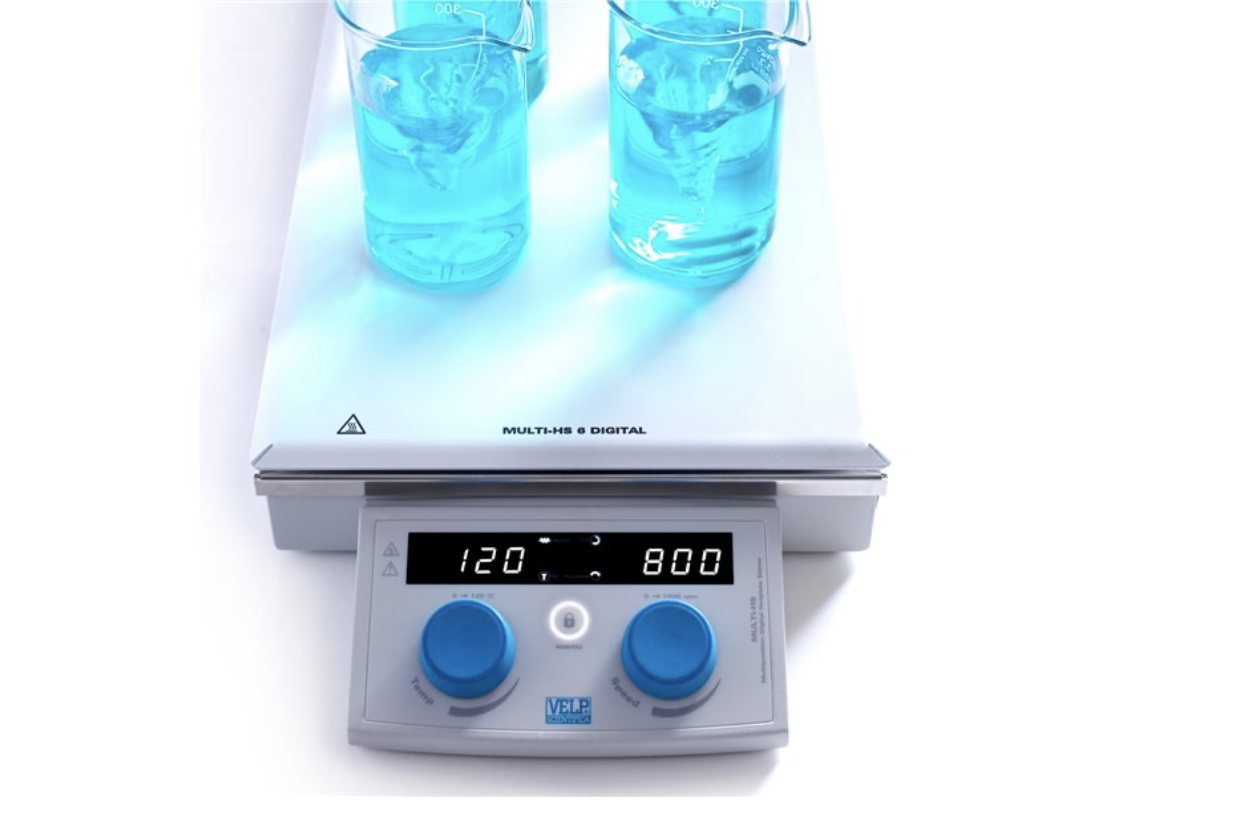

The LED display is easy to read and thanks to the intuitive icons the operator has always the clear readout of the working conditions:
- Heat activation
- Set Point temperature
- Timer activation
- Auto-reverse option
- Lock button
Technical Data;
| User Interface | Digital |
| Motor | Multi-HS 6 Digital 6 Brushless motors Multi-HS 6 Digital 15 Brushless motors |
| Plate Material | CerAlTop (ceramic coated aluminum alloy) |
| Plate Dimension | 432 x 223 mm |
| Stirring Volume (H2O) | Multi-HS 6 Digital, 6 x 400 ml Multi-HS 15 Digital, 15 x 250 ml |
| Stirring Position Distance | Multi-HS 6 Digital 100 mm Multi-HS 15 Digital 74 mm |
| Stirring Speed | 100 to 1000 rpm |
| Speed Setting Accuracy | 5 rpm |
| Temperature Range | 0 – 120 °C |
| Temperature Setting Resolution | 1 °C |
| Hot Top Warning | On display (>50 °C) |
| Timer | From 1 min to 99 h : 59 min |
| Timer Setting Steps | 1 min |
| Autoreverse | From 5 s to 99 min : 59 s |
| Autoreverse Setting Steps | 1s |
| Dimensions (WxHxD) | 240x65x550 mm |
| Power Input | Multi-HS 6 Digital , 620W Multi-HS 15 Digital, 620W |
| Weight | Multi-HS 6 Digital , 4.7 kg Multi-HS 15 Digital, 4.8 kg |
| Working In Continuous | Admitted |
| Heating Output | 600 W |
