AREX 6 Hot Plate Stirrer
Description;
Safe and powerful ceramic coated aluminum hot plate stirrer upgradable with VTF.
The independent safety heating switch prevents unintentional activation of the temperature.
The residual hot plate illuminated icon informs that the plate temperature is above 50°C.
The analog turning knobs allow precise and convenient speed and temperature settings.

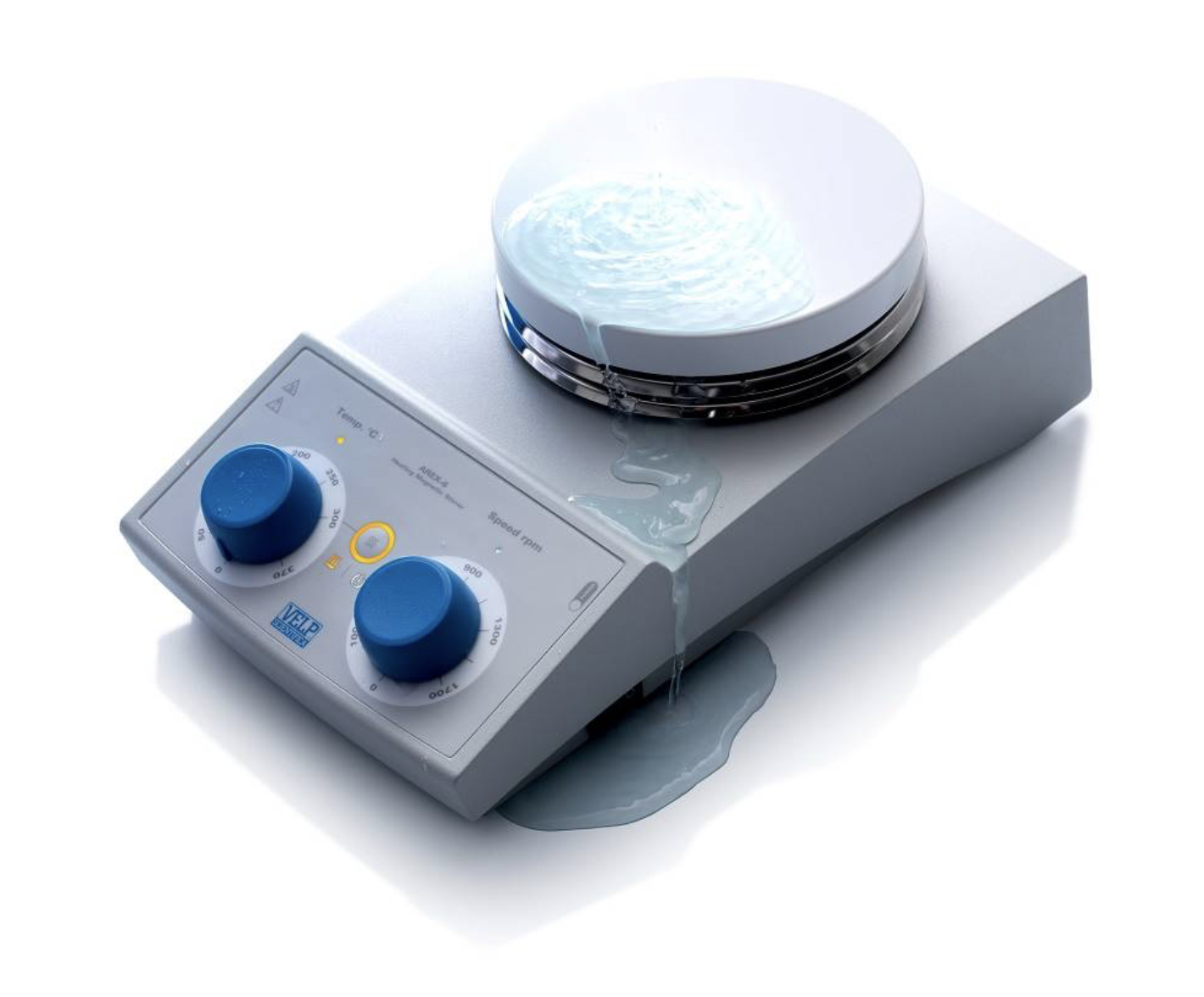

The AREX 6 is IP42 certified and thanks to the resistant die-cast housing and the run-off grove all the internal parts of the instrument are protected from potential damage.
Technical Data;
User Interface | Analog |
Motor | Brushless |
Plate Material | CerAlTop (ceramic coated aluminum alloy) |
Plate Diameter | 135 mm |
Stirring Volume (H2O) | Up to 20 L |
Stirring Speed Range | 30 – 1700 rpm |
Speed Control | Analog |
Torque Compensation | SpeedServo |
Heating Control | Analog |
Temperature Range | Room Temp. - 370 °C |

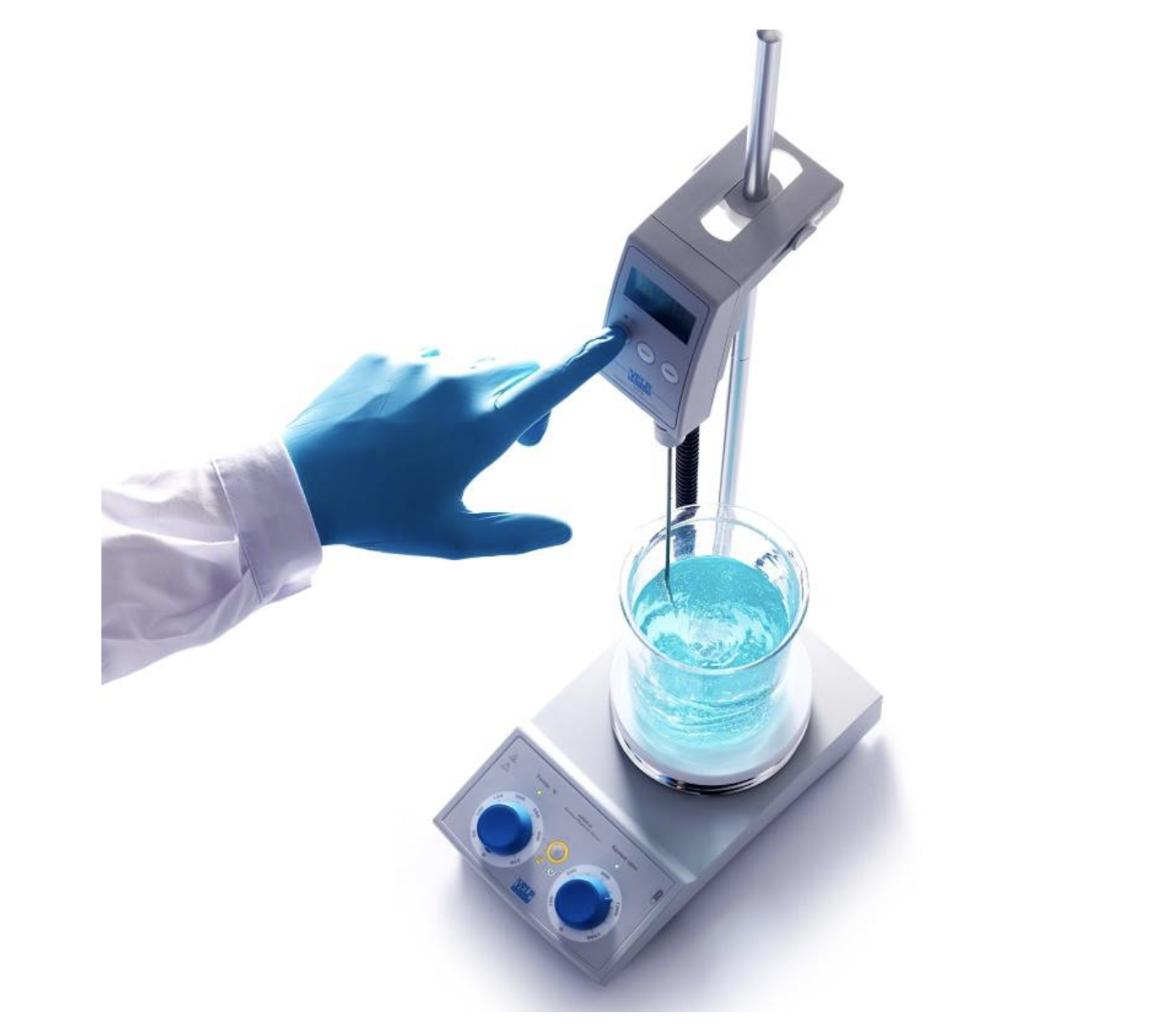

External Digital Thermoregulators Connect | VTF |
Protection Class | IP42 |
On/Off Safety-Heating-Switch | Yes |
Hot Top Warning System | Illuminated Icon |
Power Input | 630 W |
Permissible Ambient Temperature | 5 – 40 °C |
Weight | 2.6 kg ( 5.7 Ib) |
Dimensions (WxHxD) | 160x105x280 mm (6.5x4.1x11 in) |
