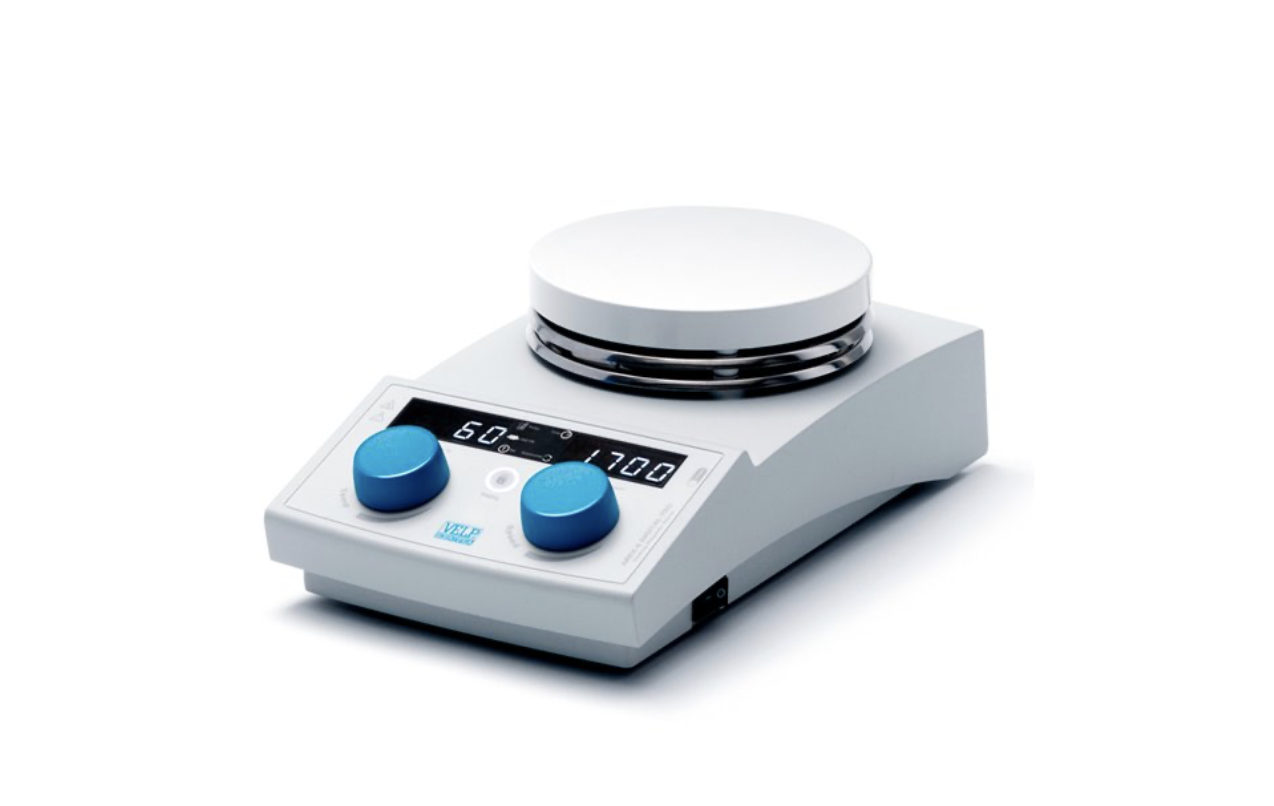

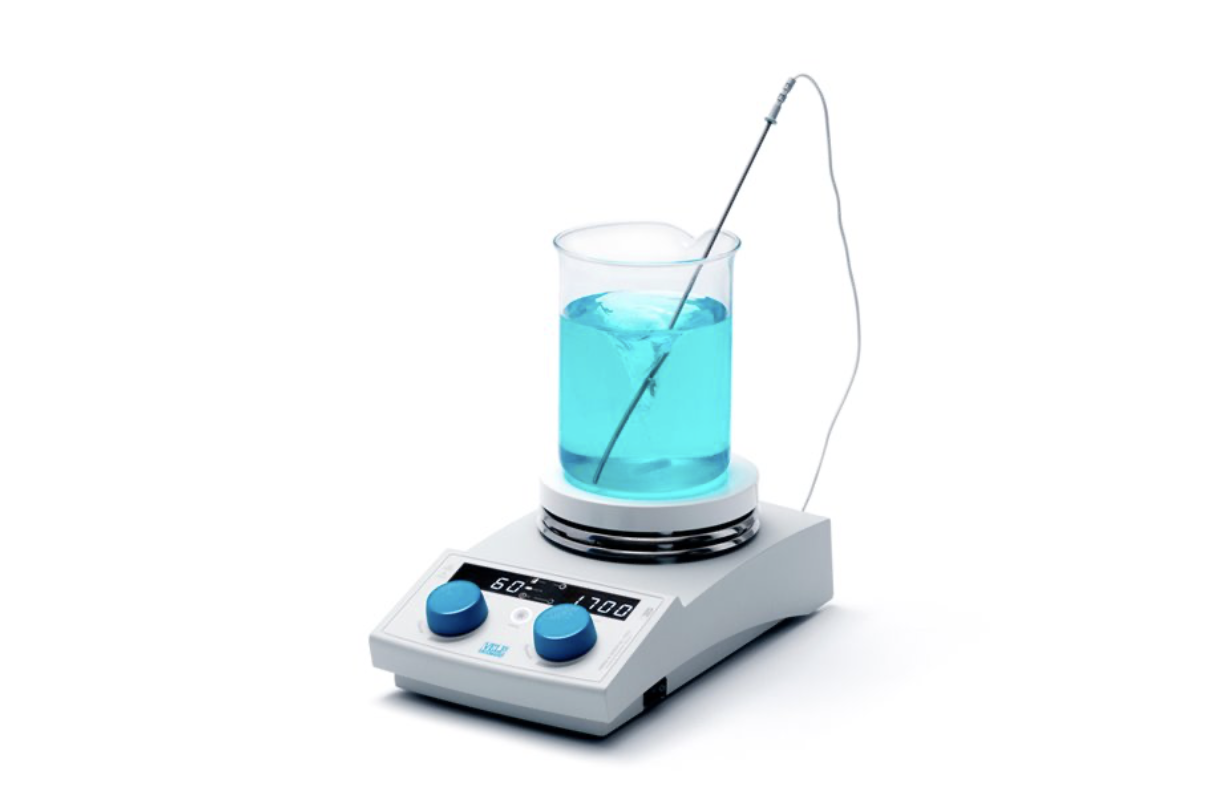

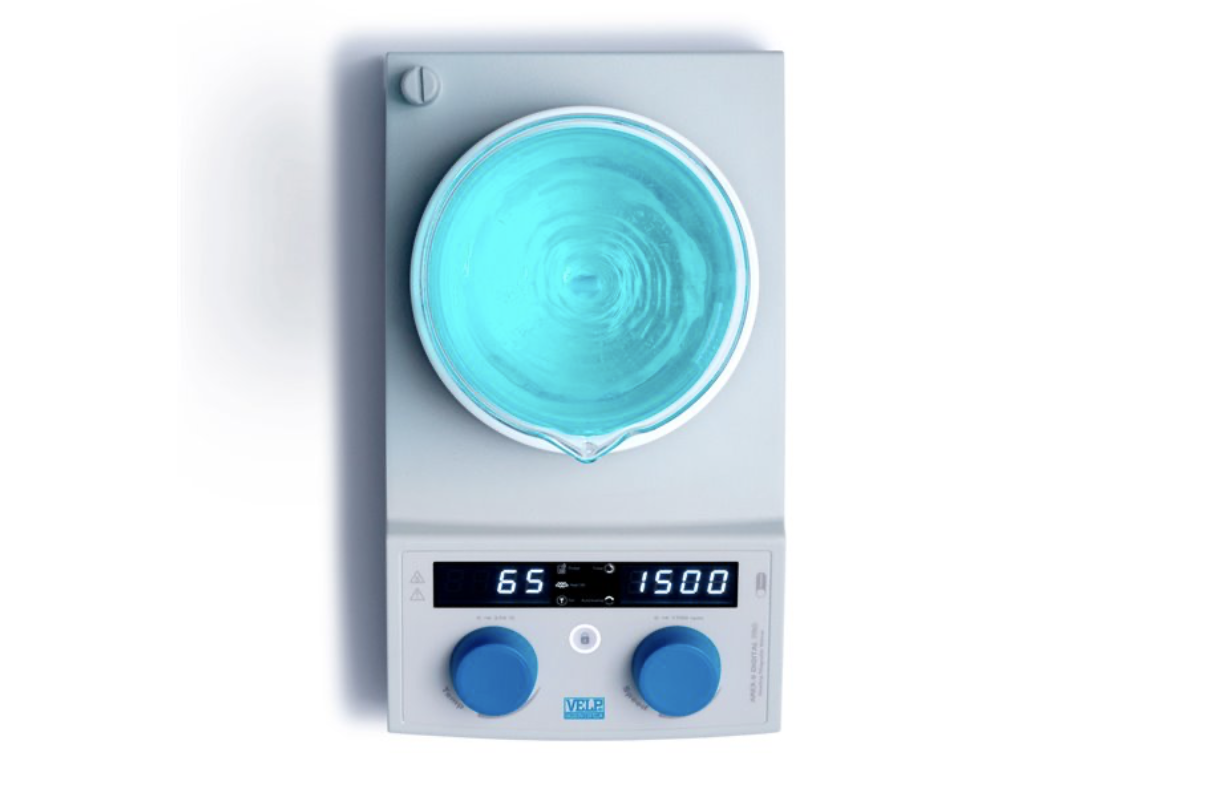

TR AREX 6 Digital Pro Hot Plate Stirrer
Description;
The AREX 6 Digital PRO is provided with 2 independent safety circuits that switch off the heat preventing possible hazards in all cases of overtemperature (higher than the set point).
When the plate temperature is 50°C the display will show a residual hot plate message preventing potential burning.
The probe detection alarm of the AREX-6 Digital PRO detects that the external probe is not immersed in the medium and stops
the heat preserving the sample from burning.
With the AREX 6 Digital PRO is now possible to adjust the maximum operating temperature in order to meet all the lab safety standards.
The AREX 6 Digital PRO includes Pt100 Probe and can be connected to VTF for precise and accurate control of the temperature of the medium.
Working with the Pt100 probe it is possible to choose 2 different thermoregulation modes to match all requirements:
FAST: the Hot Plate Stirrer quickly reaches the set point temperature with a little overshoot
FINE: slower temperature set point reaching with an optimized overshoot
Technical Data;
| User Interface | Digital |
| Motor | Brushless |
| Plate Material | CerAlTop (ceramic coated aluminum alloy) |
| Plate Diameter | 135 mm |
| Stirring Volume (H2O) | Up to 20 L |
| Stirring Speed Range | 30 – 1700 rpm |
| Speed Accuracy | 5 rpm |
| Speed Control | Digital |
| Torque Compensation | SpeedServo |
| Heating Control | Digital |
| Temperature Range | Room Temp. - 370 °C |
| Heat Setting Resolution | 1 °C |
| External Digital Thermoregulators Connect | VTF |
| External Probe Connection | Pt100 |
| Medium Heat Control Accuracy | ± 0,5 °C (VTF) ± 1 °C (PT100) |
| Timer | Yes |
| Auto-Reverse | Yes |
| Probe Detector Alarm | Yes |
| Lock Of The Intstrument | Yes |
| Protection Class | IP42 |
| On/Off Safety-Heating-Switch | Yes |
| Hot Top Warning System | On Display |
| Power Input | 630 W |
| Permissible Ambient Temperature | 5 – 40 °C |
| Weight | 2.6 kg ( 5.7 Ib) |
| Dimensions (WxHxD) | 160x105x280 mm (6.5x4.1x11 in) |
