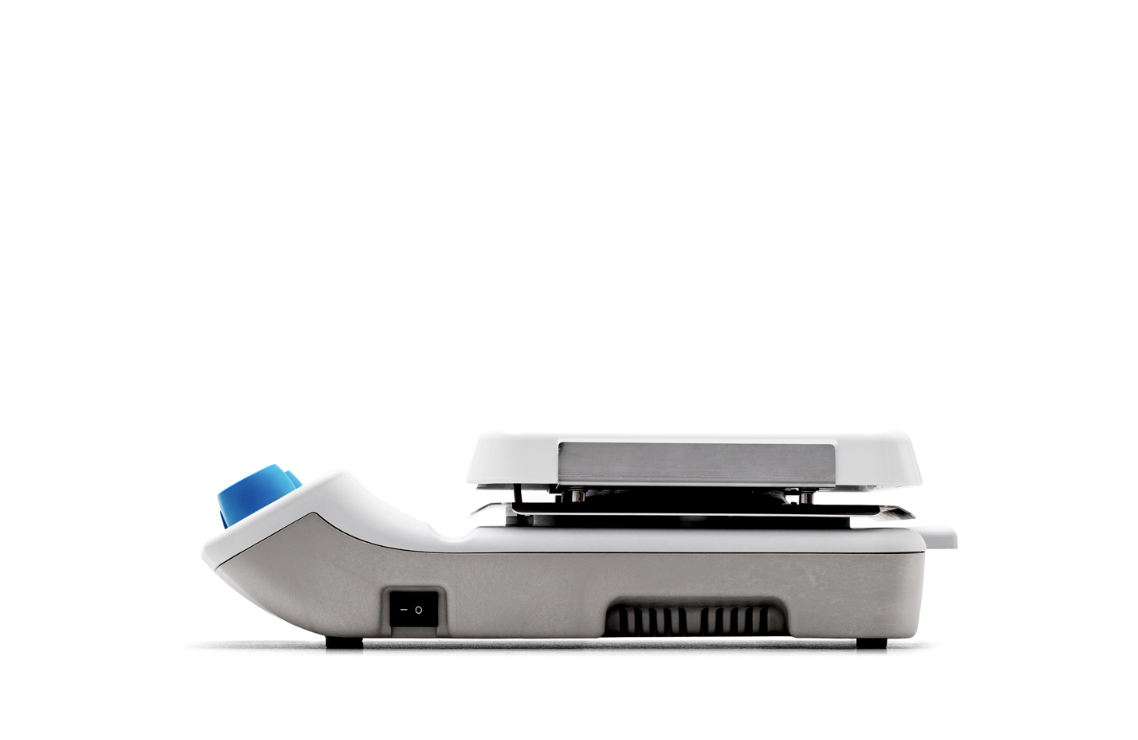

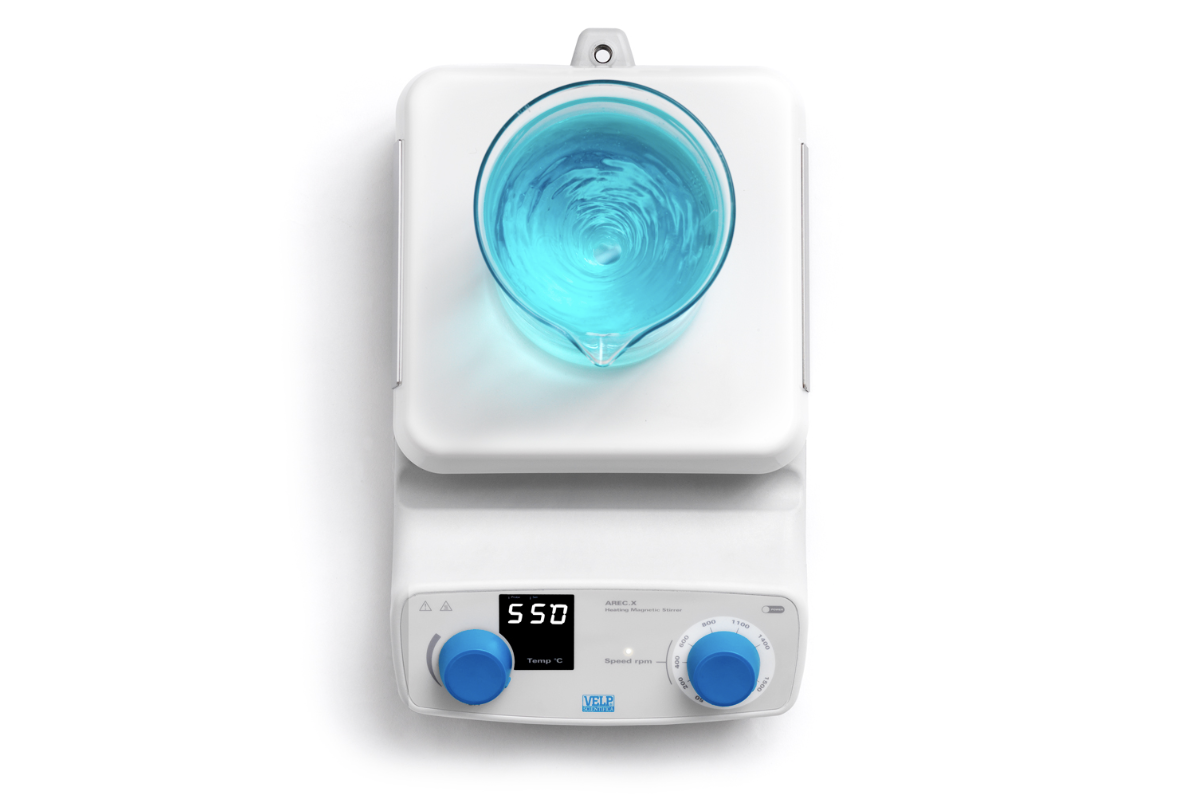

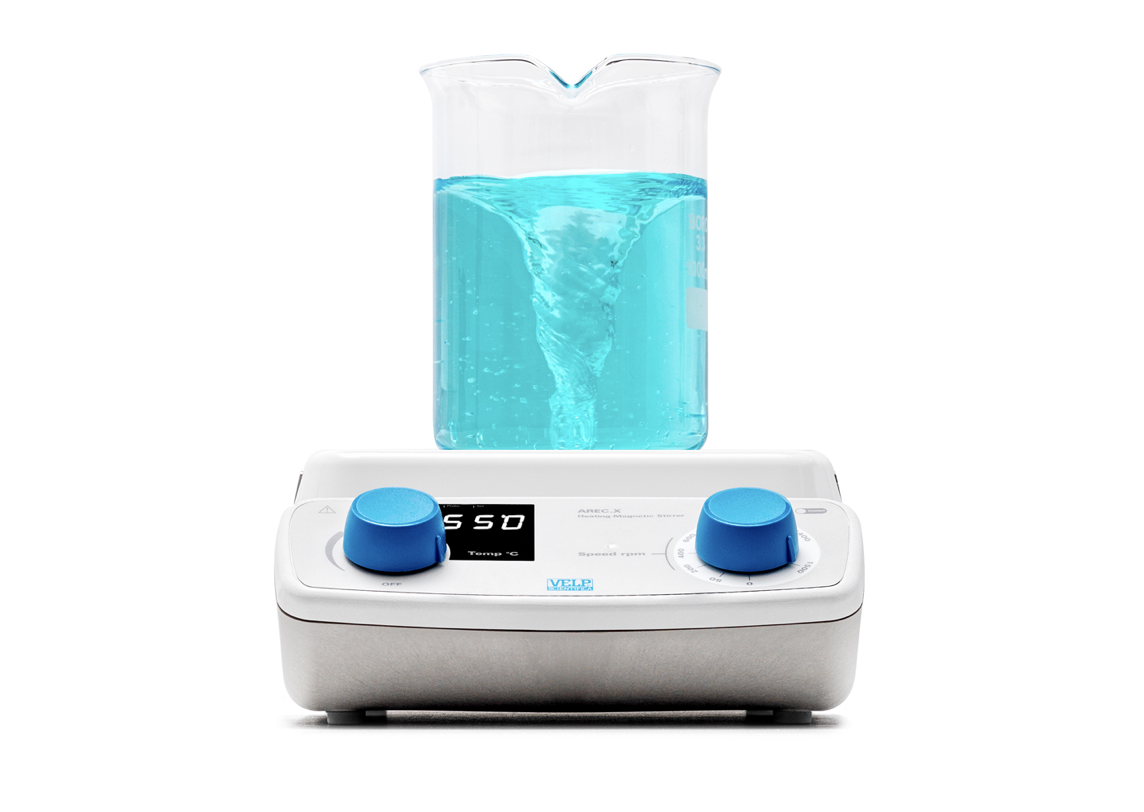

TR AREC.X Digital Ceramic Hot Plate Stirrer
Description;
The AREC.X is the versatile solution for temperature-sensitive laboratory applications where precise thermoregulation of the sample is required.
The VELP cutting-edge ceramic heating plate technology ensures temperature homogeneity, thermal efficiency and durable heating performance over time.

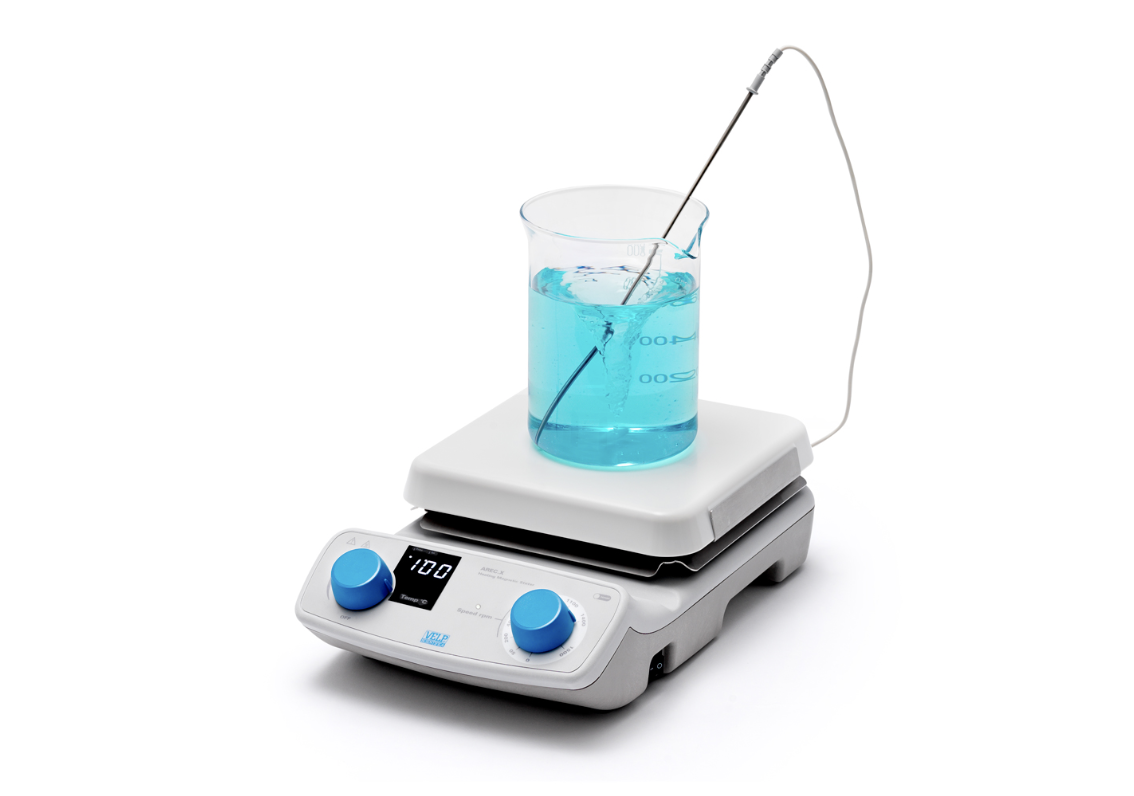

The AREC.X can be connected to the Pt100 external probe or to the VTF for precise thermoregulation of the medium.
The probe ensures thermoregulation up to 250 °C, with an accuracy of ± 1.0 °C, while the VTF guarantees premium thermoregulation performance up to 300 °C and accuracy of ± 0.5 °C. The VTF is equipped with a timer, for unsupervised operation and increased productivity.
Technical Data;
| Housing Material | Technopolymer |
| Plate Material | Ceramic |
| Plate Dimension | 180x180 mm (7x7 in) |
| Stirring Volume (H2O) | 15 L |
| Stirring Speed Range | 50 – 1500 rpm |
| Speed Control | Analog |
| Motor | Monophase PCM |
| Torque Compensation | Electronic Regulation |
| Heating Control | Digital |
| Temperature Setting Resolution | 5°C |
| Temperature Range | Room Temp. - 550 °C |
| Thermoregulation Accuracy | ± 1°C (Pt100) ± 0.5°C (VTF) |
| Hot Top Warning System | On Display ( when the temperature is above 50 °C) |
| Power Input | 800 W |
| Permissible Ambient Temperature | 5 – 40 °C |
| Weight | 3.5 kg ( 7.7 Ib) |
| Dimensions (WxHxD) | 203x94x344 mm (8.0x3.7x13.5) |
