TR ARE Hot Plate Stirrer
Description:

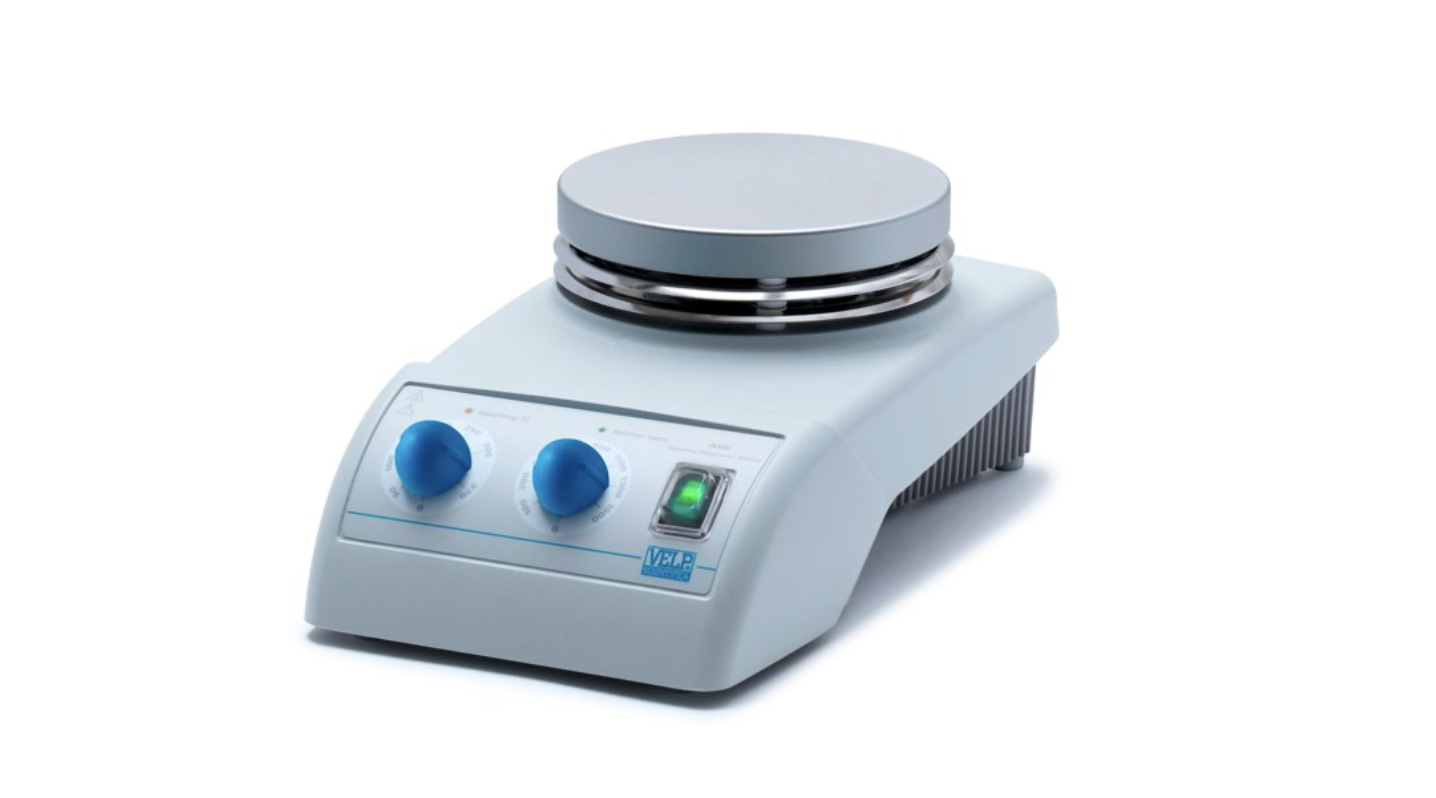

The hot plate stirrer ARE offers an innovative low profile and attractive design for an outstanding comfort.

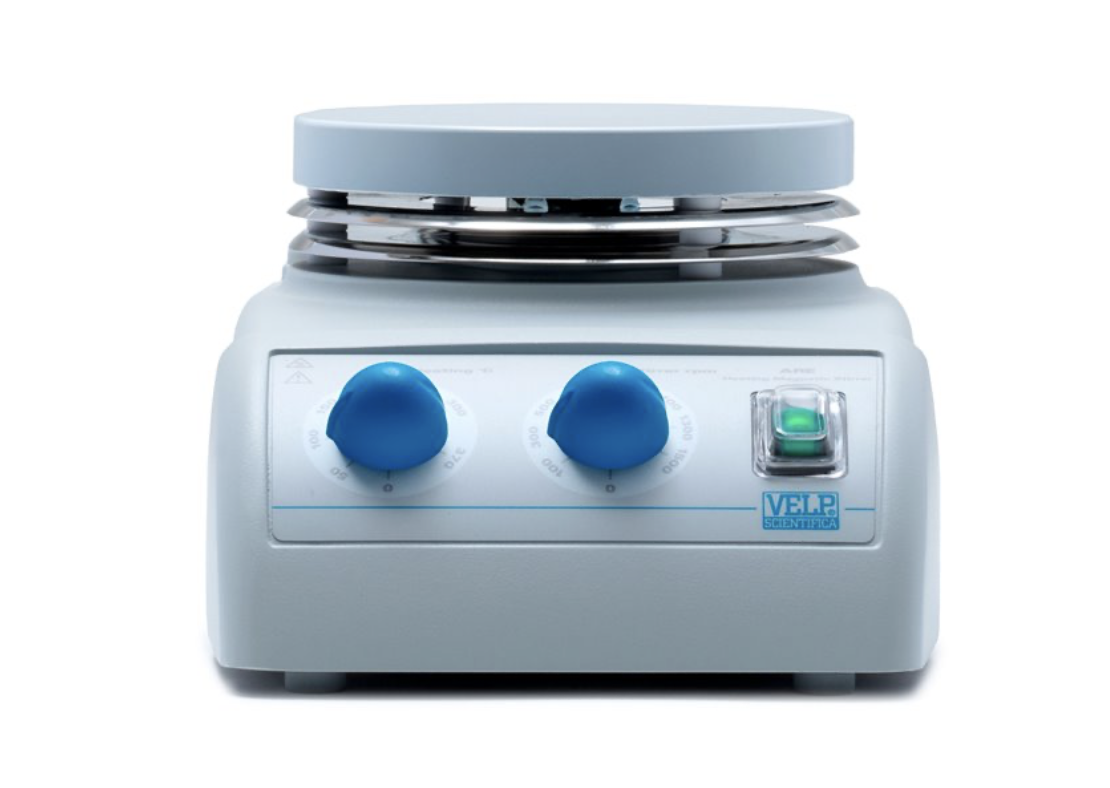

Also, the inclination of the front panel has been carefully studied to facilitate use.
The control panel is extremely intuitive.

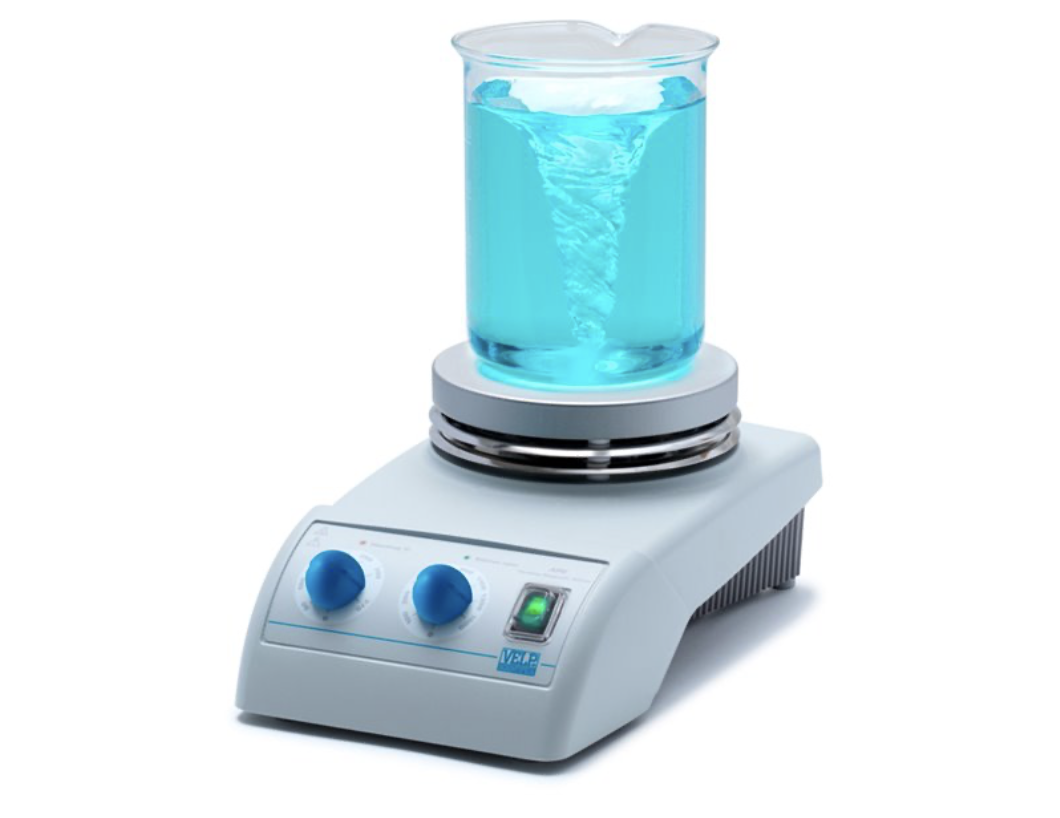

By turning the left knob of the hot plate stirrer it is possible to adjust the temperature (up to 370 °C), whilst the right one controls the stirring speed (up to 1500 rpm).

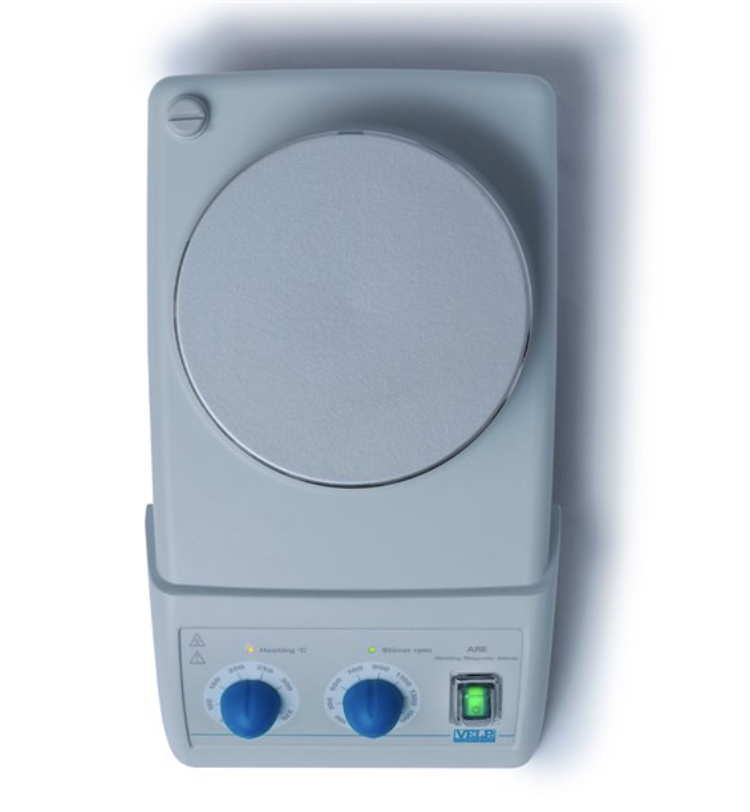

Aluminum alloy top plate ensures a great temperature homogeneity and optimum heat transfer across the entire surface.
Technical Data;
|
Construction Material |
epoxy painted metal structure; stainless steel top plate |
|
Heating Plate |
aluminum alloy coated with special protection |
|
Heatingn Plate Diameter |
135 mm |
|
Protection Rating CEI EN 60529 |
IP 42 |
|
Power |
630 W |
|
Weight |
2.6 Kg (5.7 lb) |
|
Dimensions (WxHxD) |
165x115x280 mm (6.5x4.5x11 in) |
|
Electronic Speed Control |
up to 1500 rpm |
|
Temperature Regulation |
from room temp. to 370°C |
|
Stirring Volume (H2O) |
up to 15 liters |
|
Stirring System |
high-power driving magnet type ''PCM'' operated by a mono-phase motor for continuous operation |
|
Counter-Reaction |
constant speed |
