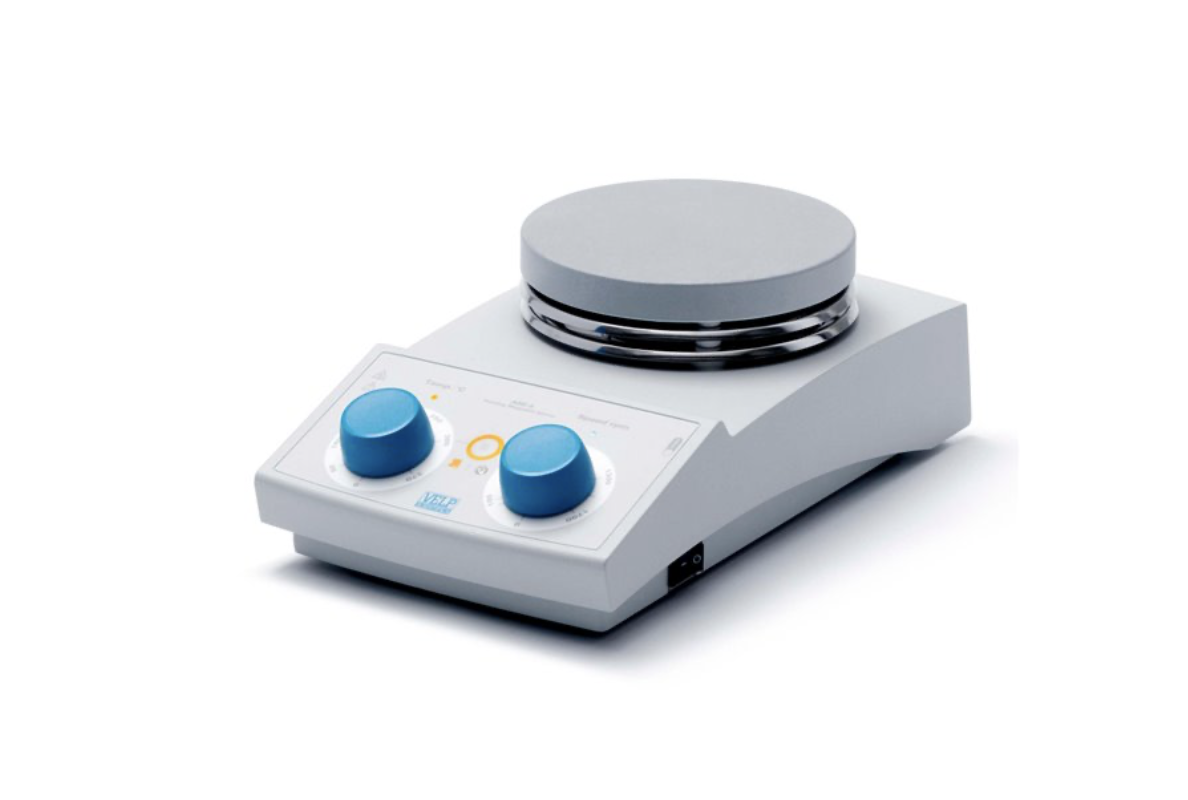

ARE 6 Hot Plate Stirrer
Description;
The independent safety heating switch prevents unintentional activation of the temperature.
The residual hot plate illuminated icon informs that the plate temperature is above 50°C.
The analog turning knobs allow precise and convenient speed and temperature settings.
The ARE 6 is IP42 certified and thanks to the resistant die-cast housing and the run-off grove all the internal parts of the instrument are protected from potential damage.
Technical Data;
User Interface | Analog |
Motor | Brushless |
Plate Material | Aluminum alloy |
Plate Diameter | 135 mm |
Stirring Volume (H2O) | Up to 20 L |
Stirring Speed Range | 30 – 1700 rpm |
Speed Control | Analog |
Torque Compensation | SpeedServo |
Heating Control | Analog |
Temperature Range | Room Temp. - 370 °C |
Protection Class | IP42 |
On/Off Safety-Heating-Switch | Yes |
Hot Top Warning System | Illuminated Icon |
Power Input | 630 W |
Permissible Ambient Temperature | 5 – 40 °C |
Weight | 2.6 kg ( 5.7 Ib) |
Dimensions (WxHxD) | 160x105x280 mm (6.5x4.1x11 in) |
