TR AM4 Digital Pro Multi-Position Hot Plate Stirrer
Description;

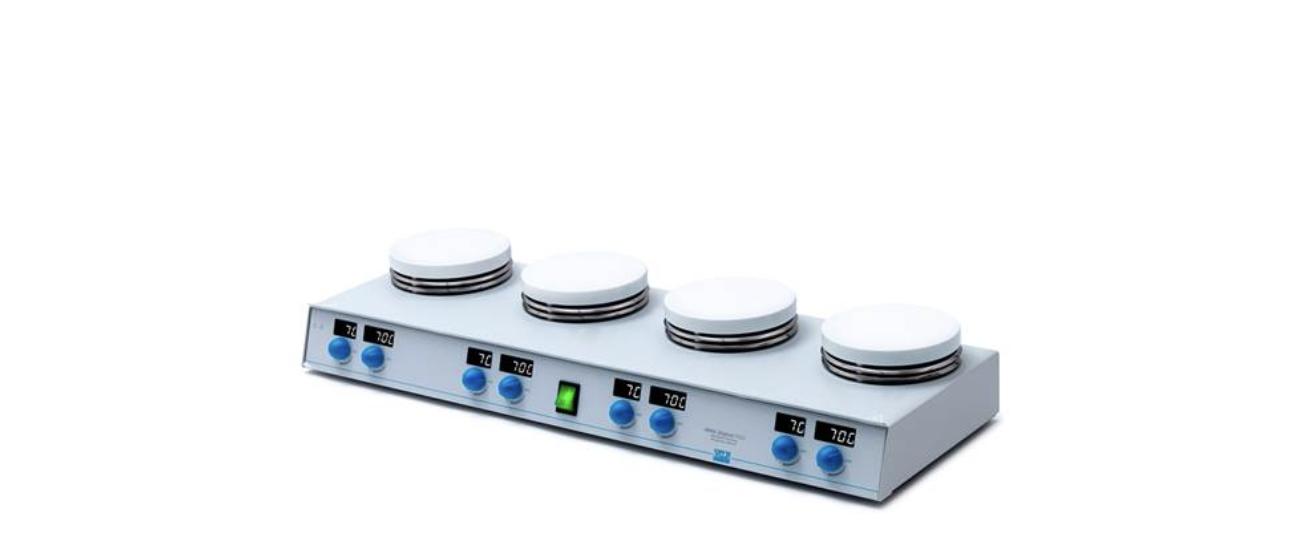

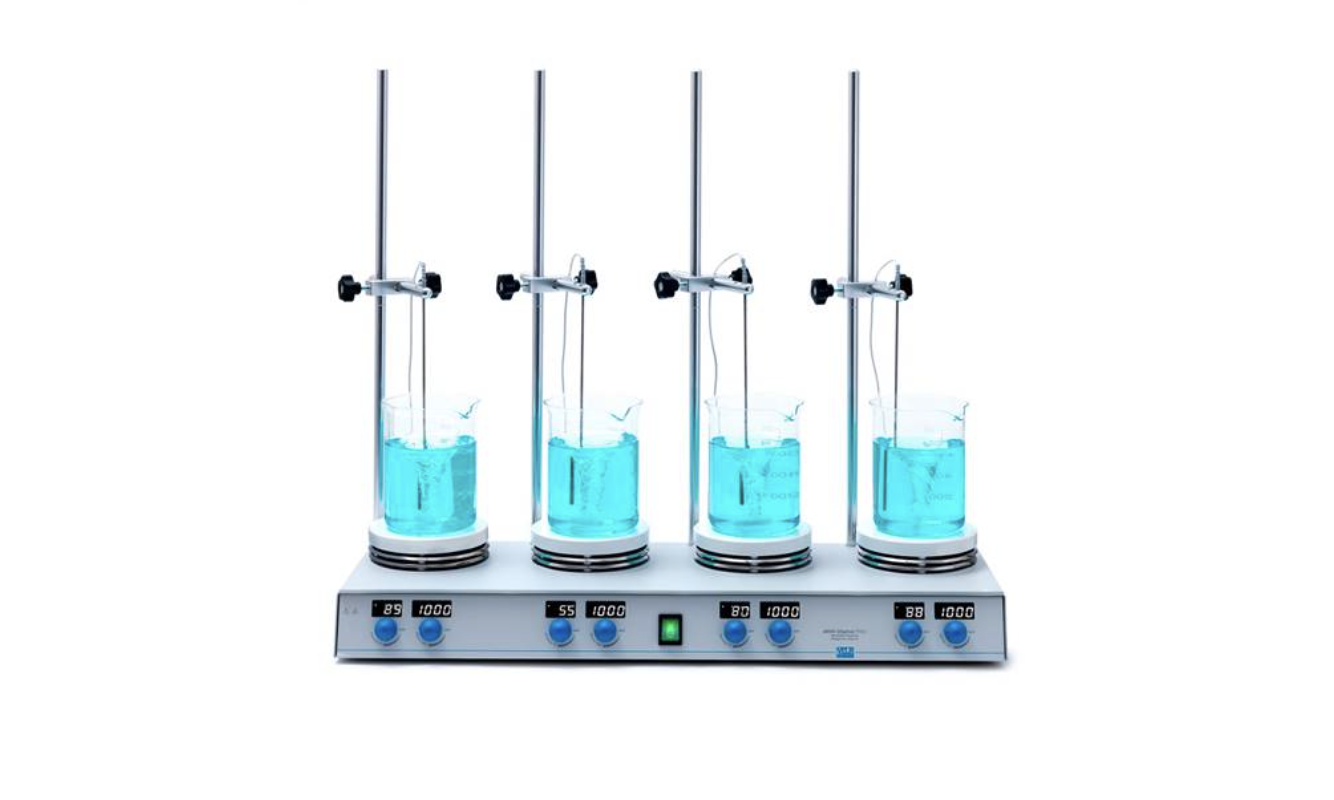

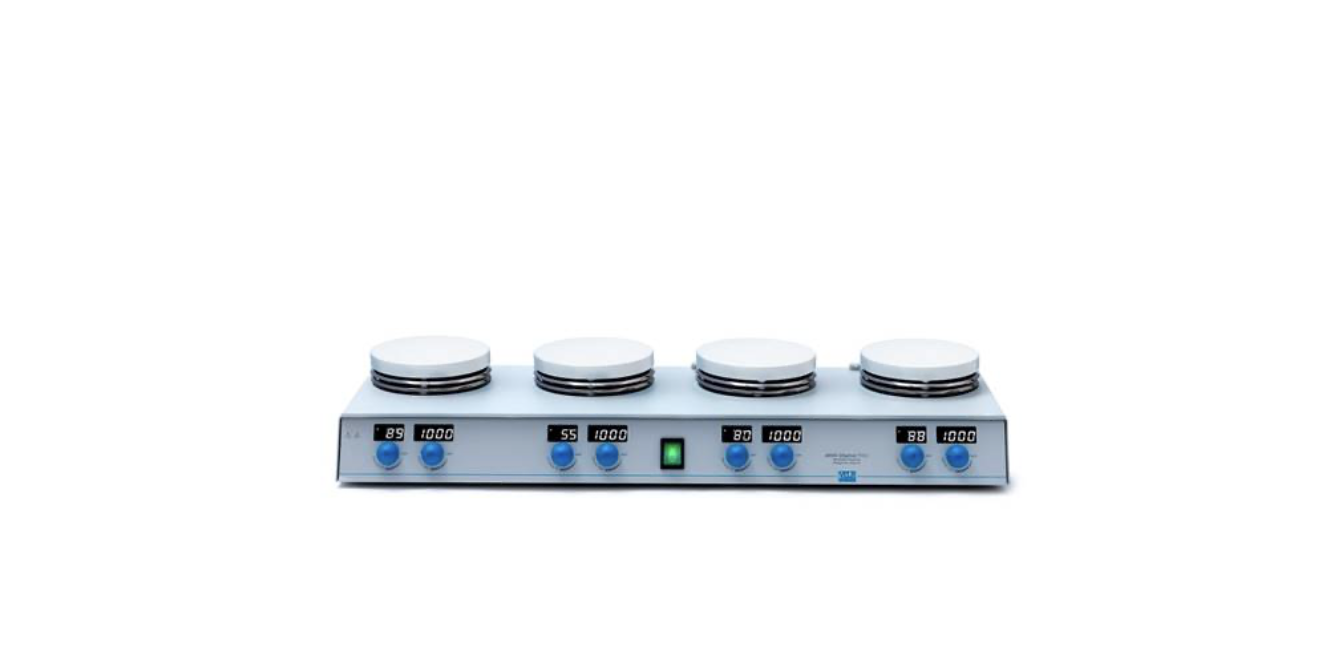

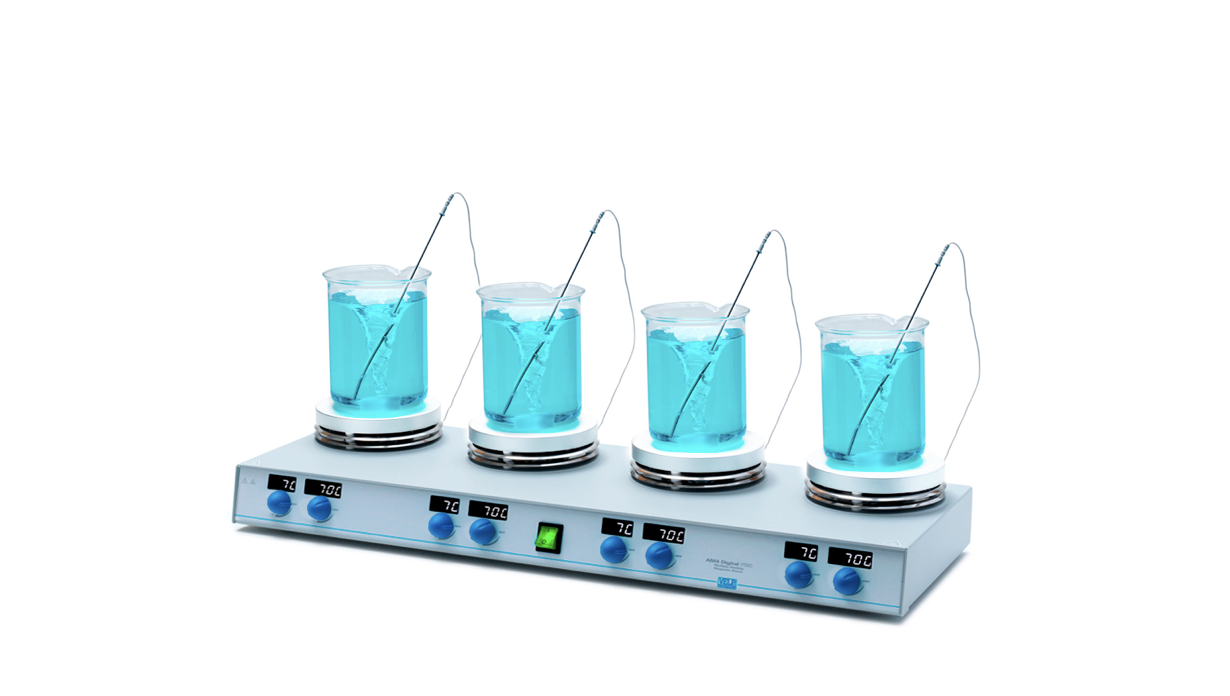

AM4 Digital PRO is the digital hot plate stirrer with 4 independent positions for precise thermoregulation.
With AM4 Digital PRO it is possible to set the temperature up to 370 °C, and the stirring speed from 50 to 1500 rpm.
SpeedServo™ ensures constant speed even when the viscosity changes (counter-reaction).
AM4 Digital PRO is equipped with digital display to finely set the stirring speed and the temperature.
Technical Data;
| Structure | epoxy painted aluminium structure |
| Heating Plate | aluminum alloy coated with ceramic coating |
| Heatingn Plate Diameter | 135 mm x 4 |
| Digital Display | 4 for speed, 4 for temperature |
| PT100 Connection | Provided x 4 |
| Vertex Connection | Provided x 4 |
| Power | 630 W x4 (2520 W) |
| Weight | 9.0 Kg |
| Dimensions (WxHxD) | 715x115x246 mm (28.1x4.5x9.7 in) |
| Electronic Speed Regulation | 50 to 1500 rpm |
| Counter-Reaction | SpeedServo |
| Electronic Temperature Regulation | From room temp. to 370°C |
| Maximum Safety Temperature Digitally Settable | temperature limit can be set between 50 and 370 °C |
| Hot Plate Warning | whenever the top plate temperature is over 50 °C |
| Heat Control Accuracy With PT100 | ± 1,0 °C |
| Heat Control Accuracy With VTF | ± 0,5 °C |
| Stirring Volume (H2O) | up to 20 liters (x4) |
| Stirring System | high-power driving magnet type ''PCM'' operated by a mono-phase motor for continuous operation |
| Counter-Reaction | constant speed |
