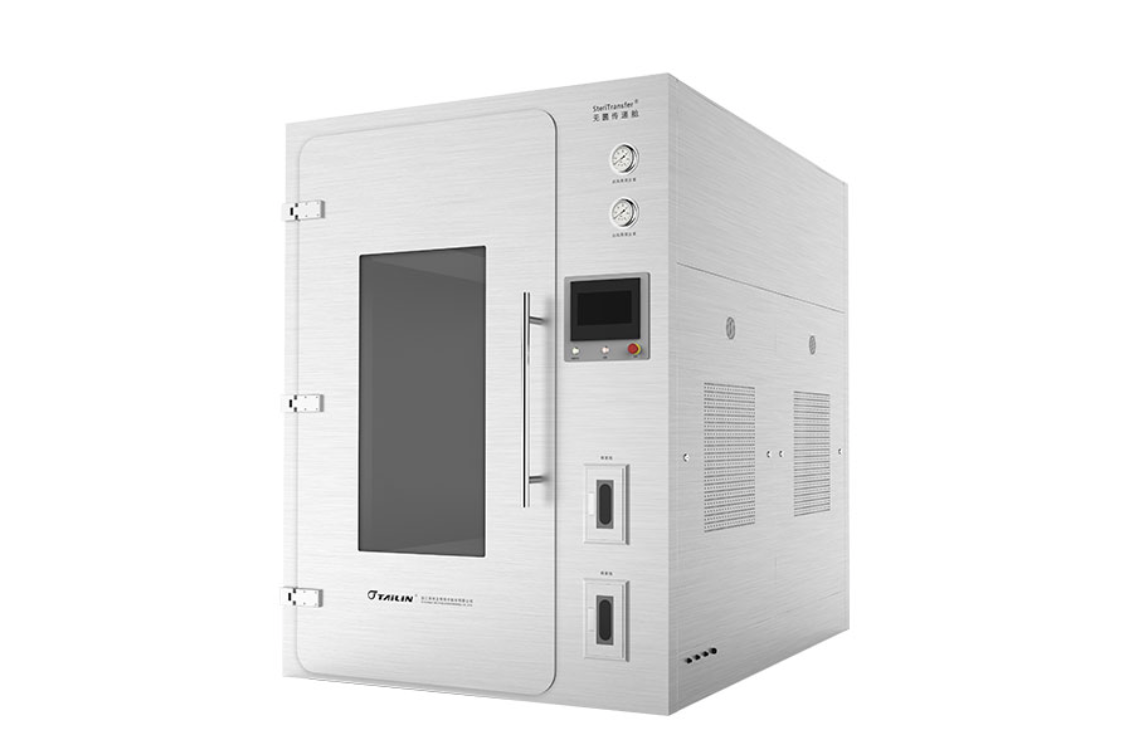

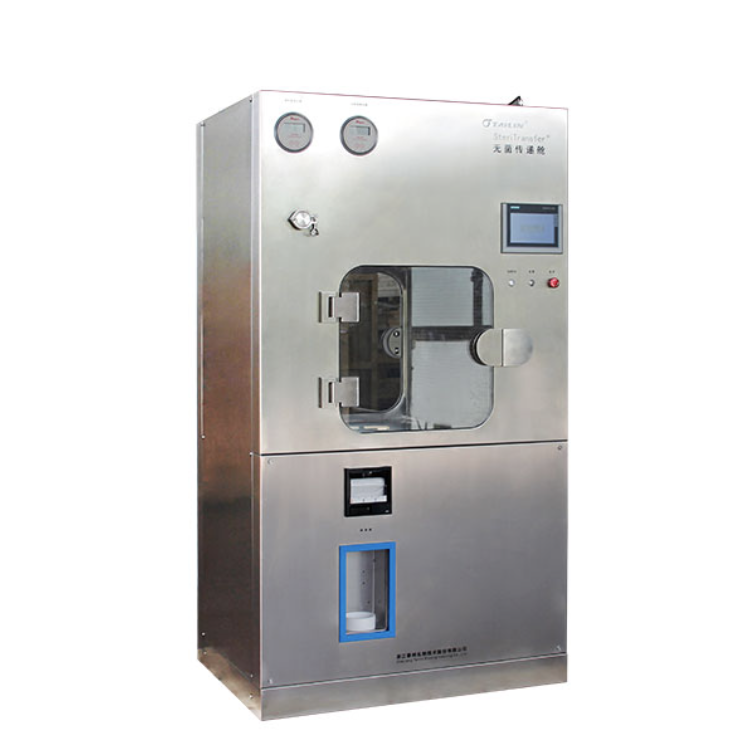

TR Dry Fog Pass Box
FPB series of Dry Fog Pass Box adopts the H2O2 atomization technology for fast bio-decontamination.
Features
- Built-in H2O2 dry fog system
- Fast cycle time
- Gas seal and Interlock doors
- Leak rate is less than 0.5%/vol/hour
- Total kill of a 106 population of G. stearothermophilus validated by biological indicators
- Horizontal unidirectional flow
- H14 HEPA filters for air intake and exhaust
- Surfaces contact to the H2O2: SUS316L
- Exhaust outlet: DN100
- Dry Fog inlet: DN32
- Data storage, audit trail, alarm logs exported and real time printing.
- Real time monitoring the temperature, humidity and pressure.
- Comply to 21CFR Part 11
Options
- Laminar flow
- H2O2 high & low concentration sensors
- H2O2 portable sensor for operator safety
Specification
| Model | FPB125 | FPB400 | FPB600 | FPB1000 | FPB1500 |
|---|---|---|---|---|---|
| Overall Size (LxDxH) mm | 1000*884*1790 | 1200*884*2080 | 1515*1100*1640 | 1515*1100*1840 | 1795*1200*1800 |
| Inner Chamber (LxDxH) mm | 500*700*500 | 700*700*800 | 800*1000*1000 | 800*1000*1200 | 1100*1100*1200 |
*Size can be customized
