ANS Serie
Description;
- The outer surface of the device is made of galvanized steel, painted with electrostatic paint. The inner surface is produced of stainless steel.
- The device operates with 195-230 V/50 Hz network voltage.
- The door of the device has double thermal glazing, it can be locked and has magnetic seal rings. Thus, it provides an opportunity to trace the stocks.

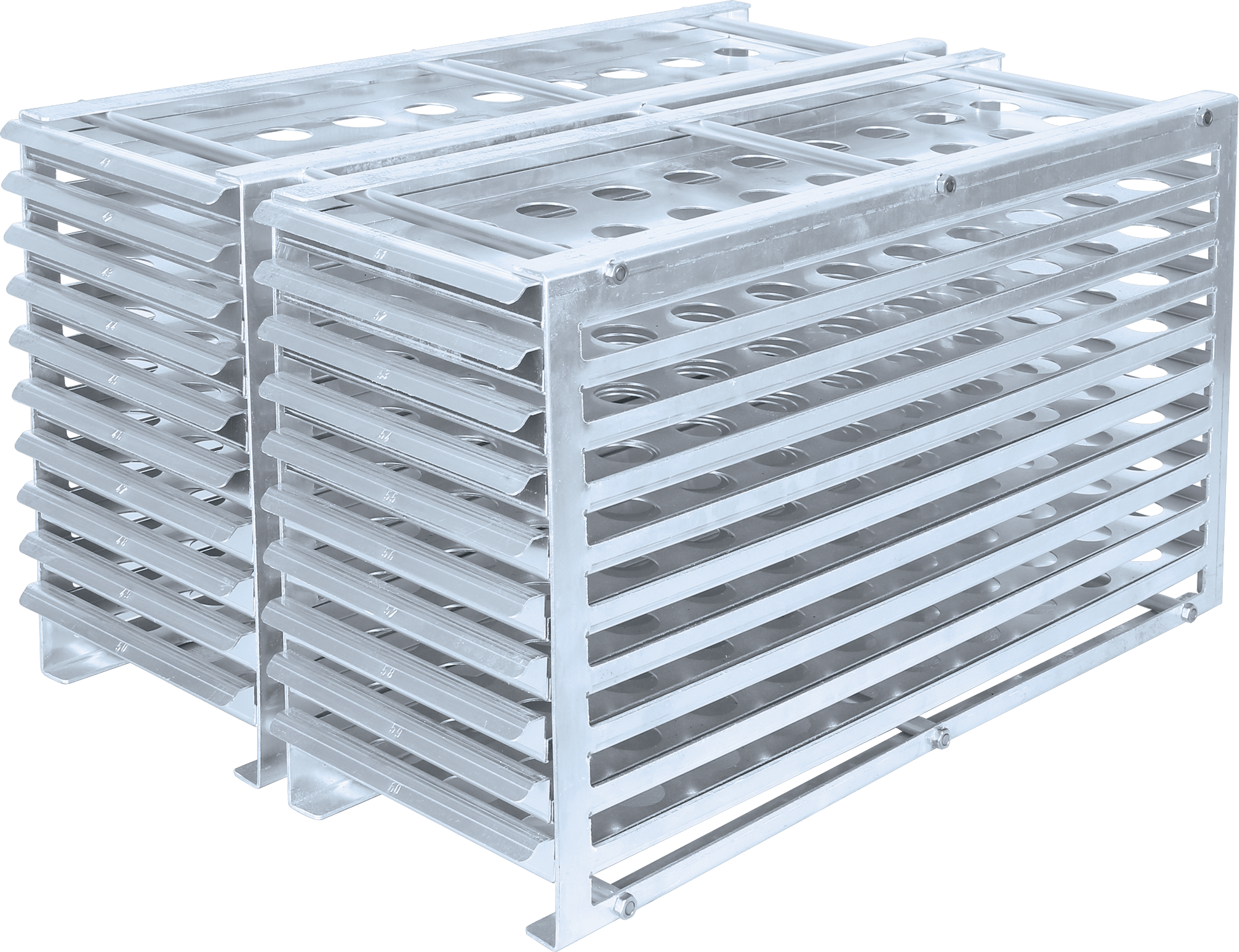

- Each drawer of the device is made of stainless sheet material and contains 20 eyes separated by letter and number systems for prevent baby bottles fall and easily trace the stocks.
- Provides equal temperature distribution with the strengthened fan system it contains.
- Works smoothly and quitely.
- In order to protect the productivity of the device cooling evaporator, there is full- automatic defrosting system.
- The lightening of the inner cabin of the device is carried out with LED lightening.
- A user-friendly digital control panel with a micro processor has been used on the device. This system can keep the data in memory for 30 days.
- There is a USB socket to transfer the cabinet temperature information to the computer when requested. In this way, the 10 year old temperature records can be transferred to the PC in excel format.
- The thermostat at the control panel of the device can make measurements with 0.1 degree sensitivity.
- There is an accumulator system charged automatically at the control panel of the device. This system allows the control panel and thermal printer (if available) to operate for 24 hours when the electricity cutts off.
- While the refrigerator is working the device gives alerts with the visual and audio signal when the lower and upper temperature limits are exceeded, the door of the device is left open, and there is electricity cut off or low voltage problems.
- The cooling system and the insulation system of the device do not contain CFC gas that is harmful for OZONE.
- There are two wheels with stoppers and two regular wheels on the device to provide easy portability.
- All medical devices produced by Emsaş A.Ş. are guaranteed for 2 years.
- As per the request of the user, a thermal printer can be installed at the device. The numerical and graphical printout of the data recorded with the thermal printer can be taken.
- All our products are produced in line with the ISO 9001:2008, TSE service place competence certificates. The device has CE certificates and barcode.
Technical data;

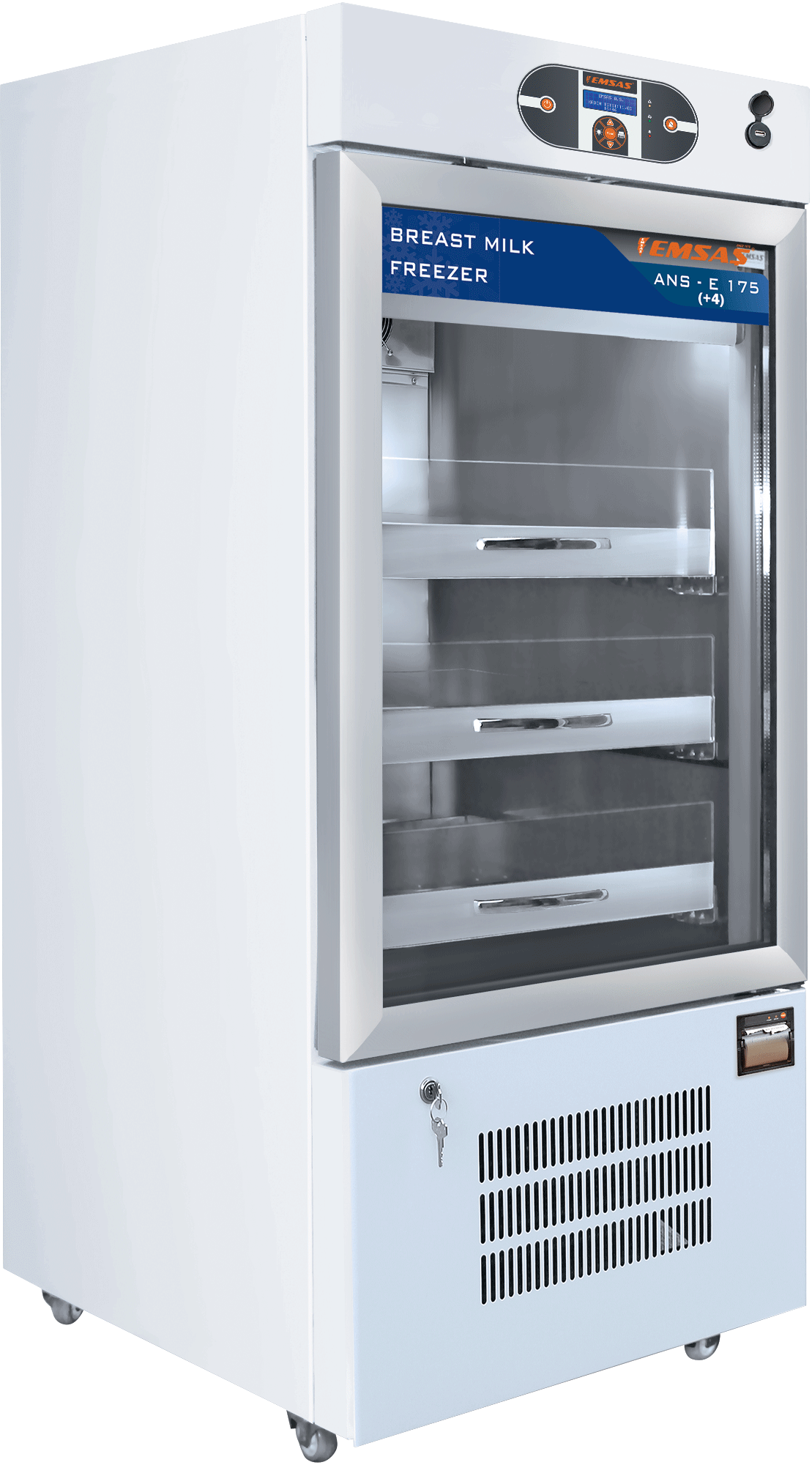

Model | ANS-E 175 |
Temperature Range (°C) | 0/ 15 °C |
Set Point (°C) | + 4 °C |
Drawers | 3 pcs |
Baby Bottle Capacity (quantity) | 20 pcs |
Total Baby Bottle Capacity | 60 pcs |
Internal Surface Stainless Steel | + |
Digital Microprocessor Control | + |
Thermal Printer | Optional |
Alarm (temperature, Open Door, Electricity) | + |
Interior Lightning | + |
External Dimensions (WxLxH) mm | 600 x 640 x 1430 |
Internal Dimensions (WxLxH) mm | 516 x 543 x 797 |
Gross Weight (kg) | 120 |
Gross Volume (L) | 223 |
Net Volume (L) | 200 |
Door Lock | + |
SMS and E-Mail Module | Optional |
Castors (2 Braked, 2 Regular) | + |

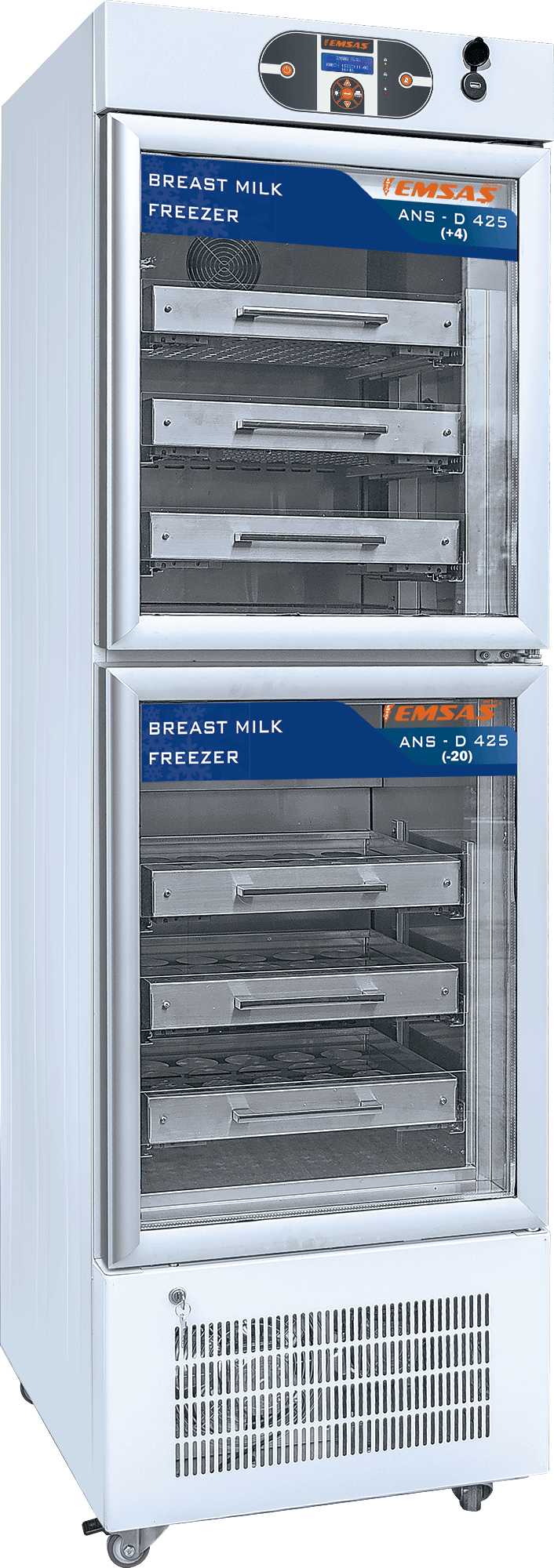

Model | ANS-D 425 | |
Refrigerator | Freezer | |
Temperature Range (°C) | 0 / +15°C | -5 / -25°C |
Set Point (°C) | +4°C | -20°C |
Drawers | 3 | 3 |
Baby Bottle Capacity (quantity) | 60 pcs | 60 pcs |
Internal Surface Stainless Steel | + | |
Digital Microprocessor Control | + | |
PC Connection | USB | |
Thermal Printer | Optional | |
Alarm (temperature, Open Door, Electricity) | + | |
Interior Lightning | + | - |
External Dimensions (WxLxH) mm | 600x590x1930 | |
Internal Dimensions (WxLxH) mm | 516x545x594 | 480x465x645 |
Weight (kg) | 200 | |
Gross Volume (L) | 167 | 143 |
Net Volume (L) | 146 | 122 |
Door Lock | + | - |
Castors (2 Braked, 2 Regular) | + |
